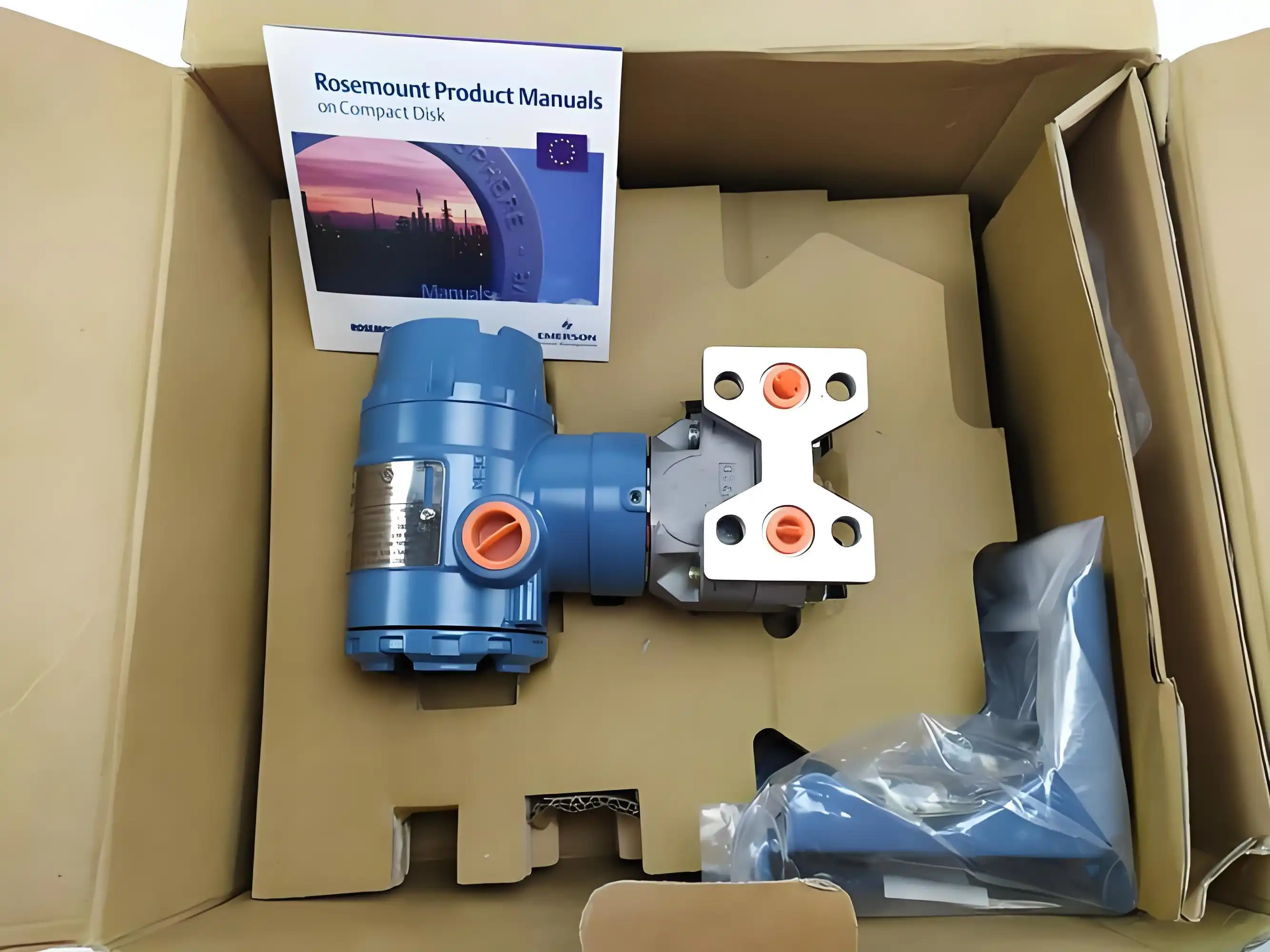

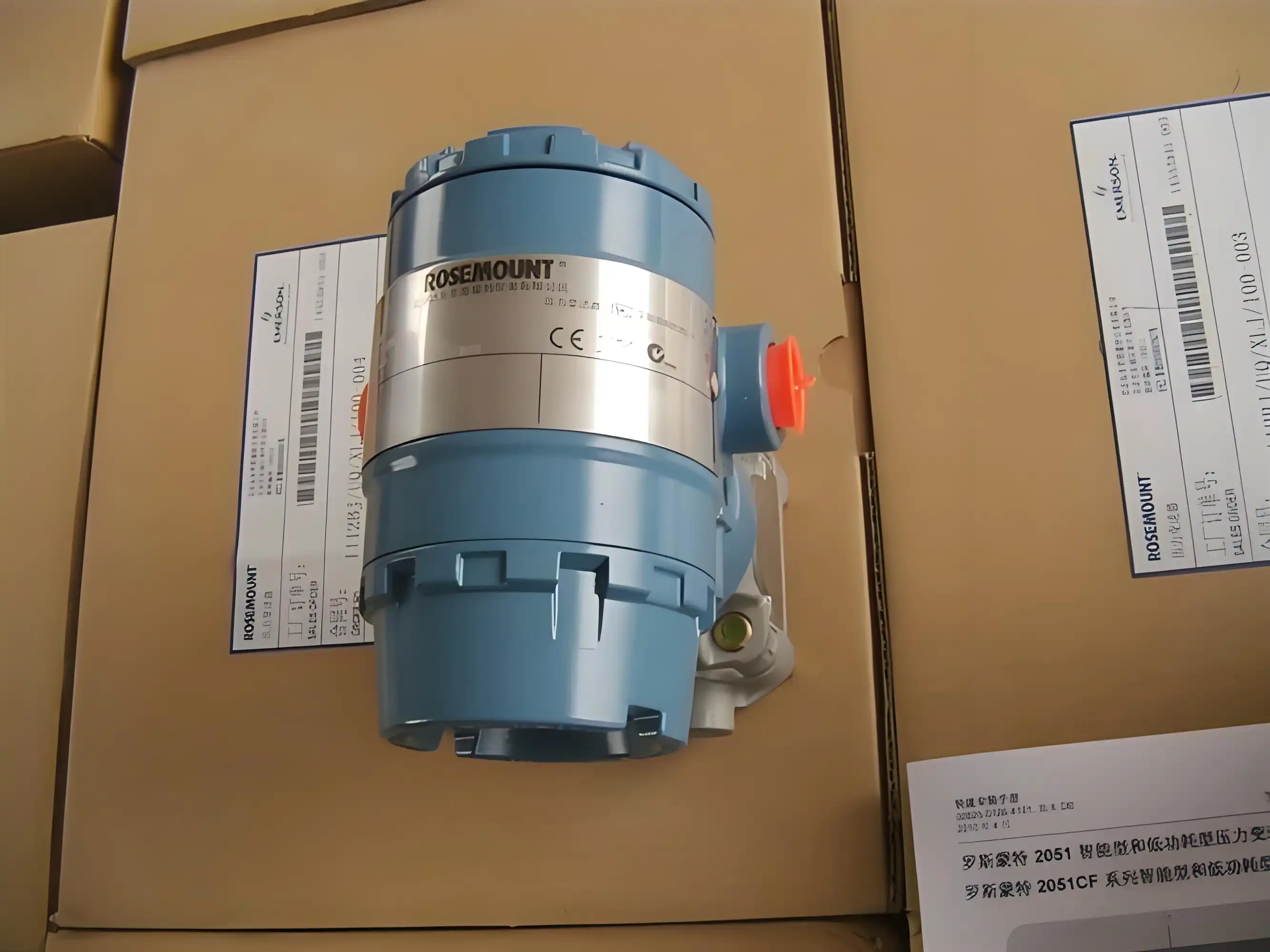

Rosemount 2051CD differential pressure transmitter

The Rosemount 2051 Coplanar pressure transmitter meets industry standards for differential and gauge pressure measurements. The transmitter is certified for safety and features a local operator interface with easy-to-use menus and built-in configuration buttons for easy device debugging. The device incorporates coplanar technology for a more flexible installation solution for a one-stop flow or level solution. Optional WirelessHART® technology allows you to add measurement points more quickly, regardless of remote or remote locations.

Product Overview

The rosemount 2051cd epitomizes a zenith of designing greatness, offering unequaled dependability, precision, and flexibility in pressure estimation. Produced by Emerson, a worldwide forerunner in mechanization innovations, the rosemount 2051cd is an essential part of the Rosemount 2051 series. This series is commended for its high level symptomatic capacities and hearty plan, making it an optimal answer for a wide exhibit of modern applications.

product-1-1

Product Features

1. Coplanar technology allows equipment to be installed directly into flow or level solutions for flexible installation.
2. It is fully assembled into the manifold, valve membrane seal or primary flow element and can be installed directly.
3. The menu of the local operator interface is convenient to use, and the built-in configuration button can be simplified debugging.
4. SIL 2/3 certification in accordance with IEC 61508 (certified by third parties) and prior use certificate of FMEDA data for safe installation.
5. Flow solutions consisting of multiple primary components, factory leak tested and calibrated to simplify installation.

Product specification

1. Reference accuracy: 0.05% of the maximum range.
2. Warranty: Limited warranty up to 5 years.
3.Range ratio: up to 100:1.
4. Communication protocol: 4-20 mA HART®, WirelessHART®, FOUNDATION™ Fieldbus, PROFIBUS®, 1-5 V low power HART®.
5. Measuring range: differential pressure measurement up to 2000psi (137.9bar), gauge pressure measurement up to 2000psig (137.9bar).
6. Process liquid material: 316L SST, alloy C-276, tantalum.
7. Diagnosis: Basic diagnosis.
8. Certificate/Certification: SIL 2/3 is certified by a third party to comply with IEC 61508, NSF, NACE®, hazardous place certification.

Packaging and Shipping

We comprehend the significance of accepting your items in wonderful condition. That is the reason each product is painstakingly bundled utilizing excellent materials intended to safeguard it during delivery. Our coordinated operations group guarantees that your item is conveyed speedily, with choices accessible for assisted delivery to fulfill your venture time constraints.

product-1-1

Contact Us

For more data on the product or some other requests, kindly feel free to us at Shaaxi ZYY. As a main provider of premium instrumentation brands with more than 10 years of involvement, we're focused on giving you proficient arrangements customized to your necessities. Reach out to us at lm@zyyinstrument.com for product quotes, specialized help, or some other help you might require. Allow us to assist you with accomplishing your functional objectives with our master administrations and top-quality items.

YOU MAY LIKE

Rosemount 1151HP Differential Pressure Transmitter

Output pressure range:
0～40KPa
0～250KPa
0～0.16～1MPa
0～0.4～2.5MPa
0～1.6～10MPa
Output type:
Ordinary analog type: 4～20mA
Conventional smart type: 4～20mA
Intended use: liquids, gases and vapors.

Rosemount™ 1199 diaphragm seal system

The Rosemount 1199 diaphragm seal system protects the transmitter diaphragm from hot and cold, corrosive or viscous processes. The sealing system has a variety of solutions, including dedicated seals for the tricky process industry. This safety certification system requires no hardware installation and can be used for a variety of pressure measurement applications, providing reliable remote measurements.

Yokogawa EJA110E High performance differential pressure transmitter

The EJA110E high-performance differential pressure transmitter uses monocrystalline silicon resonant sensor technology and is suitable for measuring the flow, level, density and pressure of liquids, gases or vapors. The EJA110E converts the measured differential pressure into 4 ~ 20mA DC current signal output, and can measure, display or remotely monitor static pressure, with rapid response, remote setting, self-diagnosis and other functions.

Yokogawa EJA120E differential pressure transmitter

The EJA120E high-performance differential pressure transmitter uses monocrystalline silicon resonant sensor technology and is suitable for measuring the flow, level, density and pressure of liquids, gases or vapors. The EJA120E converts the measured differential pressure into 4 ~ 20mA DC current signal output, with fast response, remote setting and self-diagnosis functions.

Yokogawa EJX120A differential pressure transmitter

The EJX120A high-performance differential pressure transmitter uses monocrystalline silicon resonant sensor technology and is suitable for measuring the flow, level, density and pressure of liquids, gases or vapors. EJX120A converts the measured differential pressure into 4 ~ 20mA DC current signal output, with fast response, remote setting and self-diagnosis functions.

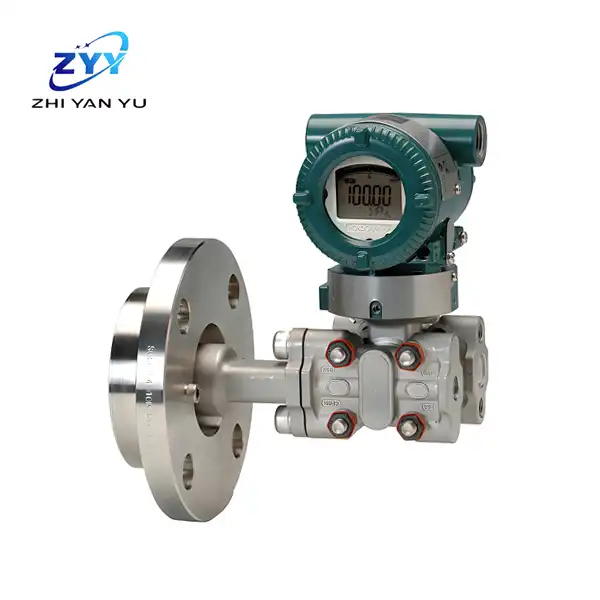

Yokogawa EJX210A flange-mounted differential pressure transmitter
