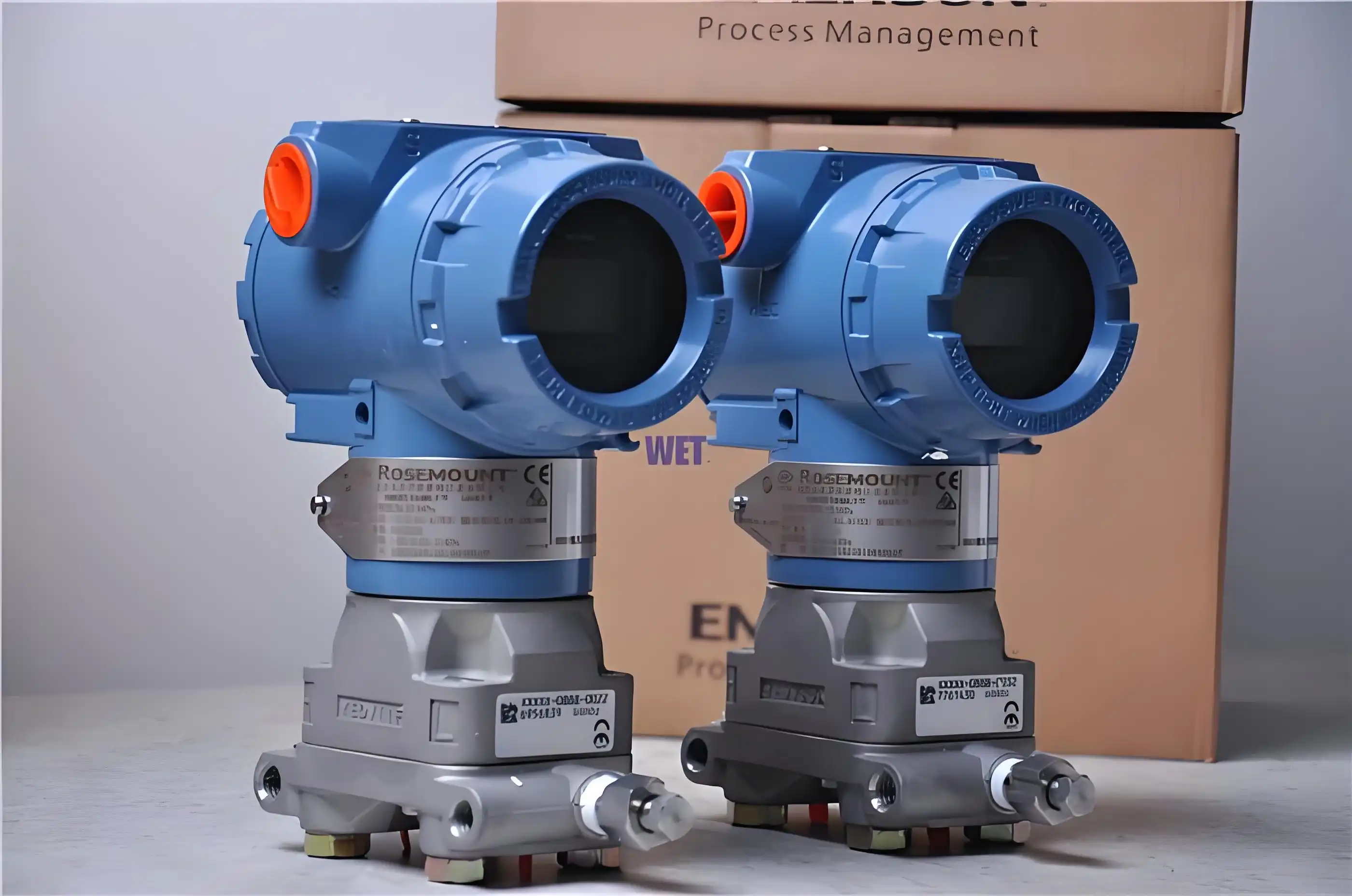

Rosemount 3051CD differential pressure transmitter

The industry-certified Rosemount 3051, featuring patented Coplanar technology, can be directly installed in a variety of measurement applications. Twelve years of stability and a 150:1 Rangedown offer reliable measurements and wide application flexibility. It offers a graphical backlit display, Bluetooth ® connectivity, flow and liquid level specific configurations, as well as enhanced software features, designed to quickly obtain the required data.

Product Overview

The 3051cd rosemount is a best in class instrument intended for accuracy pressure estimation. Created by Emerson, an innovator in robotization arrangements, this transmitter is important for the profoundly respected product, known for its dependability, exactness, and imaginative designing. The product model succeeds in changing cycle strain into an exceptionally precise and stable sign, making it an imperative device in a large number of modern applications.

product-1-1

Product Features

Rosemount coplanar technology offers more optimized performance for pressure, differential pressure flow or differential pressure level solutions.
2. Configure according to specific applications, allowing you to convert the pressure transmitter into a flowmeter with cumulative function or a level transmitter with volume measurement function.
3. All complete pressure, level or flow components have undergone leakage testing and calibration, which can reduce leakage points by up to 70% and simplify the installation process.
With 12 years of stability and a 1500:1 range ratio, it can provide reliable measurement values and wide application flexibility.
5. With Bluetooth® wireless connection, maintenance and repair work can be carried out more easily without physical connection or separate configuration tools.
6. The graphic backlit display screen is suitable for various lighting conditions and supports simple operation in 8 languages.
7. The diagnosis of loop integrity and pressure lead pipeline blockage can detect electrical loop problems and pressure lead pipeline blockage before they affect process quality, thereby enhancing safety and reducing downtime.
8. The Quick Service button is equipped with built-in configuration buttons, which can simplify the debugging process.
9. SIL 2/3 certification, in compliance with IEC 61508 (certified by a third party) and prior certificates of FMEDA data for safe installation.

Technical Specifications

Specification	Description
Measurement Range	Differential: up to 2000 psi (137,9 bar); Gage/Absolute: on request
Output Signal	4-20 mA DC with digital HART® protocol, option for WirelessHART™
Accuracy	±0.075% of span (standard), up to ±0.025% with high accuracy option
Stability	±0.1% of URL for 12 months
Operating Temperature Range	-40°F to 250°F (-40°C to 121°C), with options for extended ranges
Process Connection Size/Type	1/2-14 NPT standard, with options for flanged or alternative threads
Electrical Connection	1/2 NPT female, M20 x 1.5, with options for conduit connections
Enclosure Rating	IP67, NEMA 4X, optional IP68 for submersible applications
Housing Material	Die-cast aluminum, stainless steel option available
Wetted Materials	316L Stainless Steel, Alloy C-276, with options for Alloy 400, Tantalum
Display and Interface	Optional LCD, 5-digit display with configurable units and output
Diagnostics and Alerts	Advanced diagnostics with Power Advisory Diagnostics, Process Alert, Maintenance Alert
Pressure Damping	Adjustable, to reduce the effects of process noise
RFI/EMI Protection	Compliance with EN 61326-1 for industrial locations
Certification and Approvals	ATEX, IECEx, FM, CSA, NEPSI, and other global certifications
Response Time	Adjustable, with default setting at 100 ms for standard performance
Vibration and Shock Resistance	Meets IEC 60068-2-6 and IEC 60068-2-27 standards
Software Compatibility	Compatible with AMS Device Manager, and other asset management software

Packaging and Shipping

Each product is fastidiously stuffed to guarantee it shows up in wonderful condition, prepared for establishment. We utilize strong bundling materials to safeguard the instruments during travel, no matter what the objective. Transporting choices are adaptable, with facilitated administrations accessible upon demand, guaranteeing ideal conveyance to meet venture courses of events.

product-1-1

Contact Us

For more data on the product or to get a citation, if it's not too much trouble, contact Shaaxi ZYY, your expert instrumentation supplier with broad involvement with bringing in brands like Emerson's Rosemount. Our group is prepared to furnish you with proficient arrangements custom-made to your requirements.Email us at lm@zyyinstrument.com for product inquiries, technical support, or any other questions you may have. We are here to help you achieve operational excellence and efficiency.
