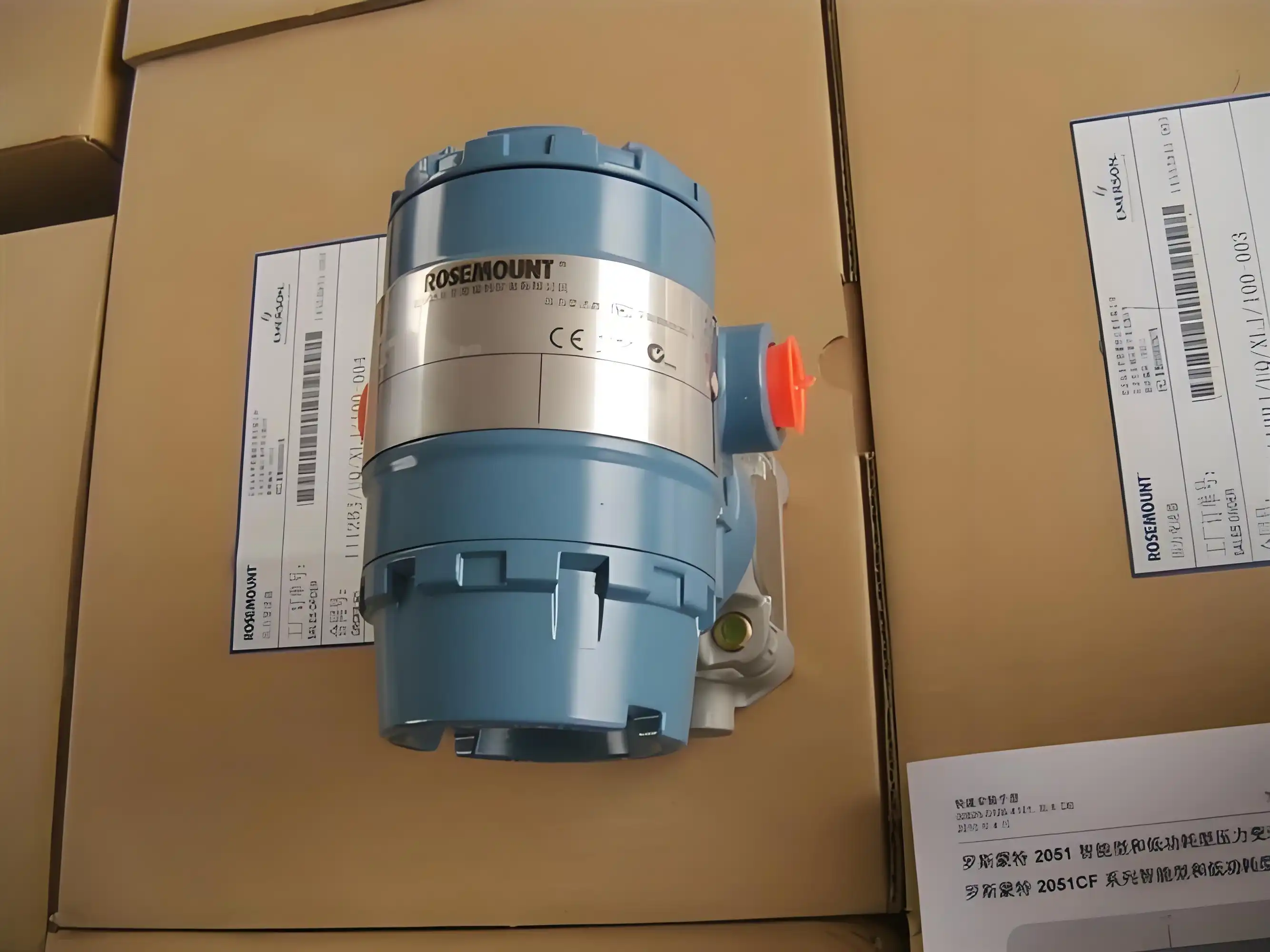

Rosemount 2051CD Coplanar Pressure Transmitter

The Rosemount 2051CD Coplanar pressure transmitter complies with industry standards and is suitable for differential pressure and gauge pressure measurement. This transmitter has passed safety certification and features a local operator interface, an easy-to-use menu and built-in configuration buttons, allowing for easy device debugging. This device integrates coplanar technology, providing a more flexible installation solution for one-stop flow or level solutions. Optional WirelessHART® technology enables faster addition of measurement points, regardless of remote or remote locations.

Rosemount 2051CD Coplanar Pressure Transmitter Product Overview:

An example of Emerson's innovative and dependable pressure measurement technology is the Rosemount 2051CD Coplanar Pressure Transmitter, a flagship product in the company's extensive line of industrial measurement instruments. This transmitter is adored for its unparalleled accuracy and dependability. It was designed to meet the needs of important applications for process control.

product-1-1

Features:

1. Coplanar technology enables the equipment to be directly installed as a flow or level solution, offering flexible installation.
2. It has been fully assembled into the manifold, valve diaphragm seal or primary flow element and can be installed directly.
3. The menu of the local operator interface is easy to use, with built-in configuration buttons for simplified debugging.
4. SIL 2/3 certification, in compliance with IEC 61508 (certified by a third party) and the prior use certificate of FMEDA data for safe installation.
5. A flow solution composed of multiple primary components, which has undergone factory leakage testing and calibration, simplifies installation.

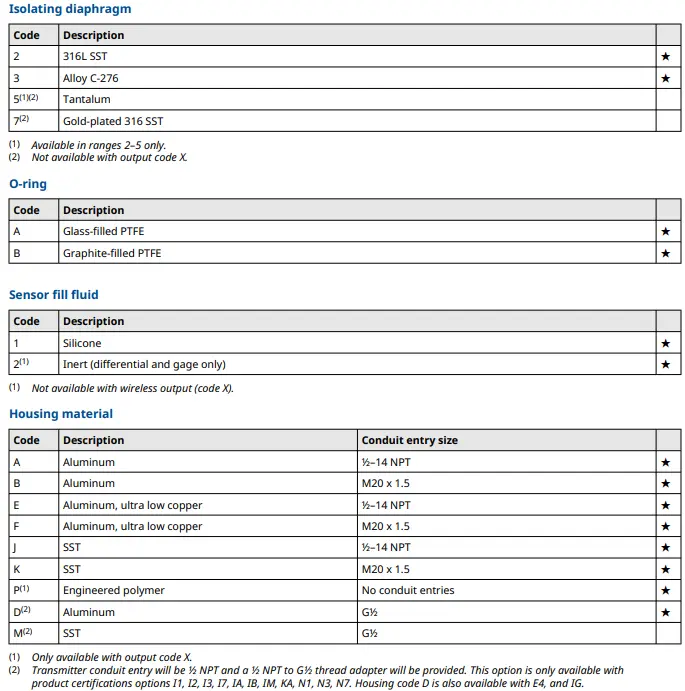

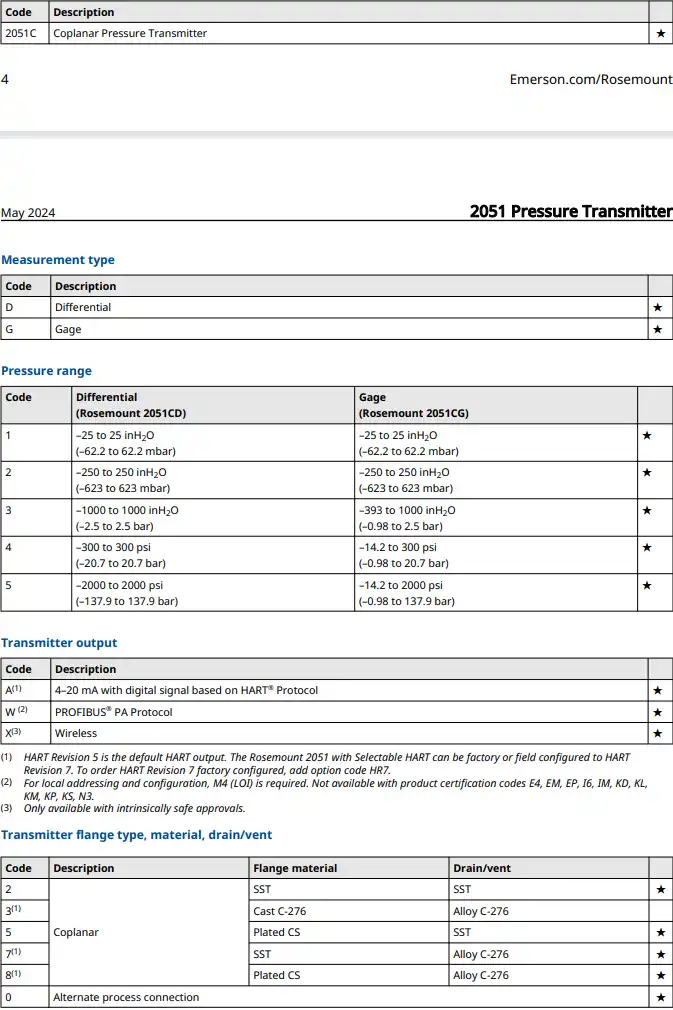

Technical Specifications:

product-673-1010

product-685-691

Conclusion

If you want to get more information about this product, you can contact us at lm@zyyinstrument.com!
