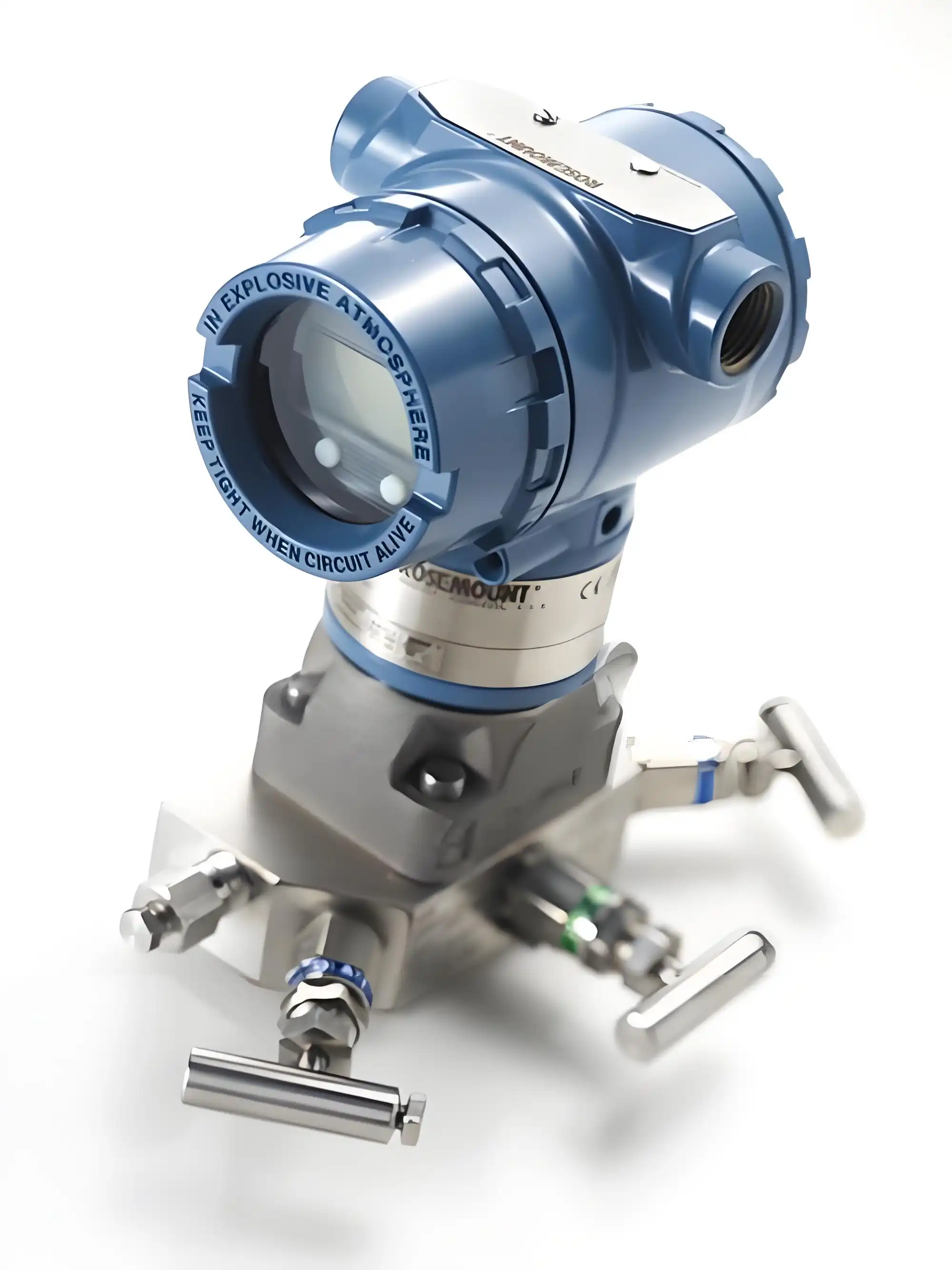

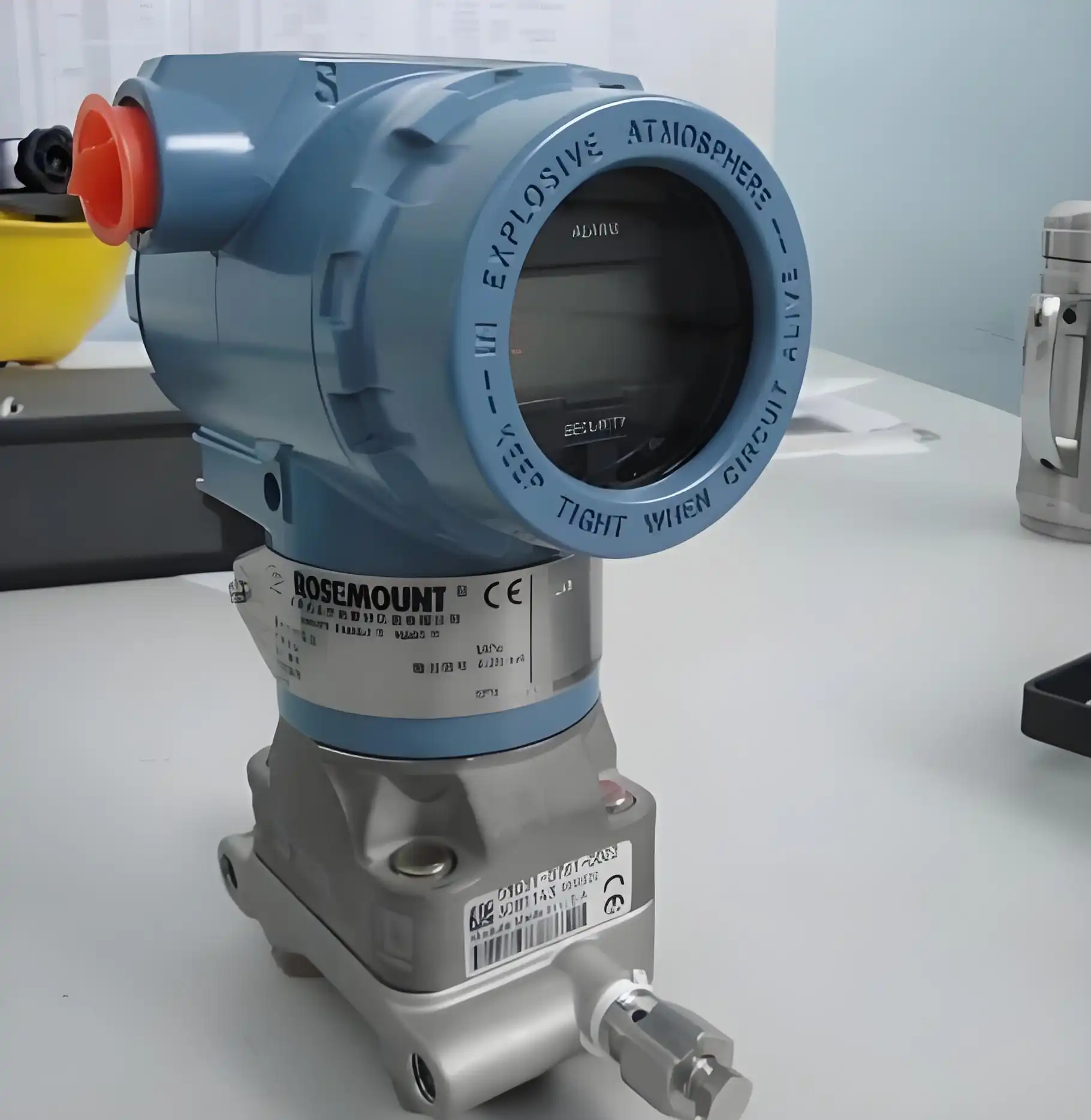

Product Name: Rosemount 3051CA Absolute Pressure Transmitter

Product Details: Rosemount 3051CA Absolute Pressure Transmitter

The Rosemount 3051ca Absolute Pressure Transmitter is a precision-engineered device designed to provide reliable and accurate pressure measurements in various industrial applications. This transmitter is part of the esteemed Rosemount 3051 series, known for its robust performance and high-quality standards. The 3051CA model specializes in absolute pressure measurement, offering a wide range of capabilities to meet the demands of different process control environments.

Shaanxi Zhiyanyu is a professional supplier of high-quality process control testing and measuring instruments. We specialize in selling various transmitters, including pressure transmitters, temperature transmitters, flow transmitters, liquid level meters, flow meters, pressure gauges, sensors, valve positioners and other instruments. Widely used in chemical industry, petroleum, papermaking, electric power, city gas, environmental protection, water treatment and other fields. Most of our products are exported to the Middle East, Asia, Africa and America. It also enjoys a high reputation at home and abroad. We can provide selection quotations for more products of this brand, which can best meet your needs!

product-1-1

product-1-1

Product Features:

The Rosemount 3051CA Absolute Pressure Transmitter boasts a multitude of features that enhance its functionality and make it a preferred choice for industrial applications. With its HART communication protocol, the transmitter enables seamless integration with existing control systems, facilitating easy configuration and monitoring. The device's design includes a fail-safe output that ensures process safety in the event of a power failure or communication loss. Additionally, the transmitter's self-diagnostics capabilities allow for continuous monitoring of its performance, providing alerts for maintenance and potential issues.

Technical Specifications:

Specification Details
Measurement Range 0 to 4000 psia (275.8 bar)
Output Signal 4-20 mA HART® Protocol
Accuracy ±0.04% of span, ±0.25% of reading (whichever is greater)
Temperature Range -40 to +185 °F (-40 to +85 °C)
Pressure Sensor Stainless Steel, High-Performance
Operating Temperature -40 to +185 °F (-40 to +85 °C)
Enclosure Rating NEMA 4X, IP66, IP68 (depending on model)
Power Requirements 10.5 to 42.4 Vdc, <2% ripple required
Loop Resistance Minimum 250 Ω
EMI/RFI Protection Compliant with international standards
Display Optional LCD/Local Operator Interface (LOI)
Connections Coplanar or Traditional Flange, ½–14 NPT (depending on model)
Alarm Levels Low and High Alarms with Adjustable Hysteresis

Product Highlights:

Advanced Diagnostics: The Rosemount 3051ca features advanced self-diagnostics that continuously monitor the health of the transmitter, providing early warnings of potential issues and aiding in predictive maintenance strategies.

Rugged Construction: Designed with a stainless-steel sensor and a robust housing, the transmitter is built to withstand harsh industrial environments and provide long-term reliability.

Flexible Configuration: The HART communication protocol allows for easy configuration and monitoring through a variety of devices, including Field Communicators and AMS Device Manager.

Intrinsic Safety: The transmitter is designed with intrinsic safety options, ensuring safe operation in potentially explosive environments.

Ease of Installation: The Rosemount 3051CA offers straightforward installation with its Quick Connect/Disconnect (QCD) option, which simplifies the process and reduces downtime.

Accuracy and Stability: The transmitter is calibrated at the factory to ensure high accuracy and stability, minimizing the need for field adjustments and reducing the total cost of ownership.

Applications:

The Rosemount 3051ca Absolute Pressure Transmitter is widely used across a diverse range of industries due to its precision and reliability. Key application areas include:

Oil and Gas: Used for wellhead and pipeline pressure monitoring to ensure efficient extraction and transport of hydrocarbons.

Chemical Processing: Monitors pressure in reactors and storage vessels to maintain process control and safety.

Power Generation: Measures pressure in steam lines and turbine systems for optimal performance and efficiency.

Water and Wastewater: Ensures proper pressure management in water treatment and distribution systems.

Food and Beverage: Maintains process integrity in sanitary applications with high accuracy and hygienic design.

Petrochemical: Monitors pressure in refineries and chemical plants for process optimization and safety.

product-1-1

Technical Support and Services:

Shaaxi ZYY offers comprehensive technical support and services for the 3051ca Absolute Pressure Transmitter. Our team of experts provides end-to-end solutions, from product selection and configuration to installation and maintenance. We pride ourselves on our customer-centric approach and are committed to ensuring that our clients receive the best possible support to maximize their process efficiency and safety.

Maintenance:

Self-Diagnostic Capabilities: The Rosemount 3051CA is equipped with advanced self-diagnostic features that continuously monitor the health of the transmitter. This allows for early detection of potential issues, which can help in planning maintenance activities and reducing downtime.

Predictive Maintenance: The diagnostics also support predictive maintenance strategies by providing alerts and warnings before a failure occurs. This proactive approach can minimize maintenance costs and improve overall system reliability.

Ease of Calibration: The Rosemount 3051CA can be easily calibrated in the field, which reduces the need for specialized technicians or service visits. This feature allows for more flexible maintenance schedules and can be particularly beneficial in remote locations.

Durable Construction: The robust construction of the Rosemount 3051CA, including its stainless steel sensor and high-quality materials, is designed to withstand harsh environments, which can result in lower maintenance frequency and costs.

Certifications:

The Rosemount 3051ca Absolute Pressure Transmitter is certified by various international bodies, ensuring compliance with global standards:

CNAS (China National Accreditation Service for Conformity Assessment)

ROHS (Restriction of Hazardous Substances)

ExNEPSI (National exploration Safety Certification of China)

ISO 9001 (International Organization for Standardization)

MA (Measurement Assurance Program)

Packaging and Shipping:

The transmitter is securely packaged to withstand the rigors of international shipping. Each unit is carefully packed with protective materials to prevent damage during transit. Shaaxi ZYY ensures that all shipments comply with international transportation regulations and are fully trackable to provide peace of mind to our customers.

product-1-1

Contact Us:

Shaaxi ZYY is a professional instrument company specializing in the sales of premium brands such as Emerson, Rosemount, Yokogawa, Endress+Hauser, Azbil, Fisher, Honeywell, ABB, Siemens, and more. With over a decade of experience as a supplier, we offer a wide range of product models and are dedicated to providing professional solutions for our clients. For more product pricing information or to discuss your specific needs, please contact us at lm@zyyinstrument.com. We look forward to serving you and becoming your trusted partner in process control and instrumentation.
