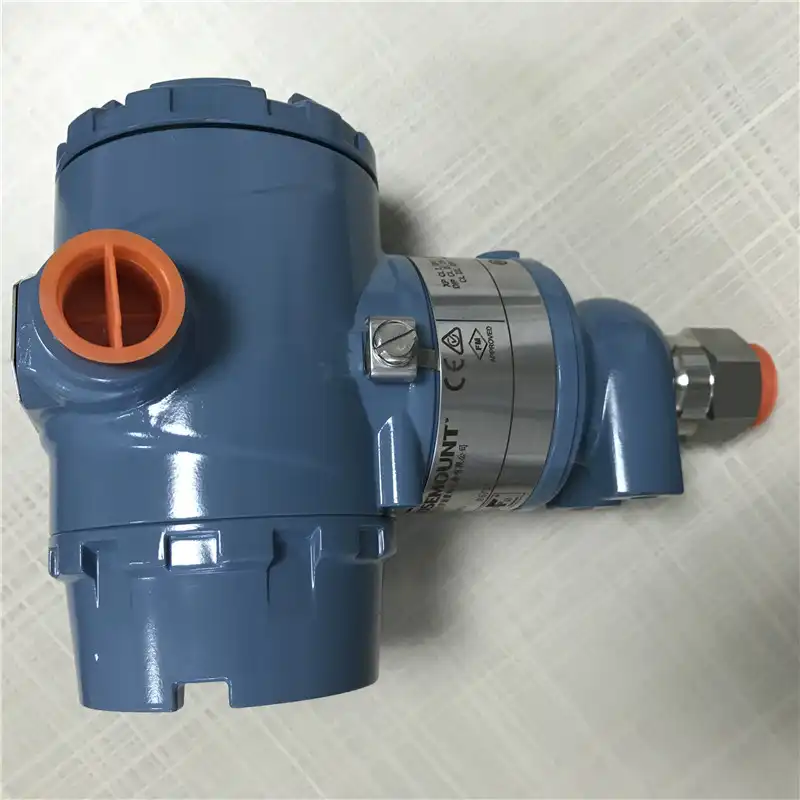

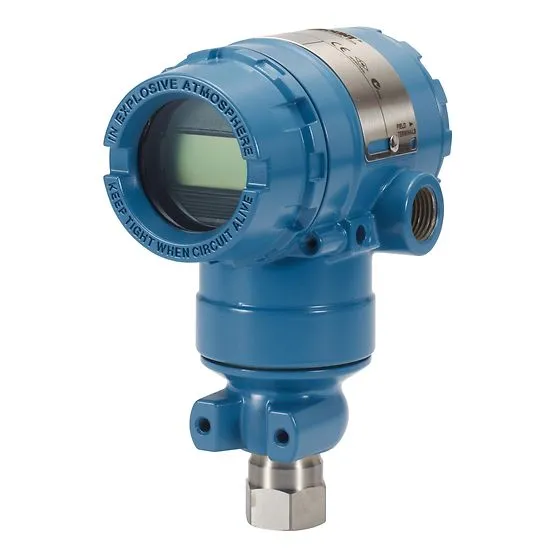

Rosemount ™ 2051TA Direct Connection Absolute Pressure Transmitter

The Rosemount 2051TA direct connection pressure transmitter is an industry-standard device that can provide reliable process data and help you improve work efficiency. This transmitter can provide accurate gauge pressure and absolute pressure measurement and is available for direct installation. This pressure transmitter features an intuitive on-site operation display panel, which simplifies debugging and reduces the number of required tools. It is an economical, efficient and powerful solution.

Rosemount 2051TA Pressure Transmitter Product Overview

The Rosemount 2051ta Pressure Transmitter is a robust and versatile instrument designed for precise pressure measurement in a variety of industrial applications. This transmitter is engineered to provide reliable and accurate pressure readings, ensuring optimal process control and efficiency. With its advanced design and features, the 2051TA is a preferred choice for industries demanding high-performance pressure monitoring solutions.

product-555-555

Product Specification

1. Limited warranty of up to 5 years.
2. The range ratio is as high as 100:1.
3. Communication protocols: 4-20mA HART®, WirelessHART®, FOUNDATION™ fieldbus, PROFIBUS®, 1-5V low-power HART®.
4. Measurement range: The gauge pressure measurement can reach up to 10,000 psig (689.47bar), and the absolute pressure measurement can reach up to 10,000 PSIA (689.47bar).
5. Process contact liquid materials 316L SST and alloy C-276.
6. Basic diagnosis.
7. Certification is achieved through SIL 2/3 certification based on IEC 61508 implemented by an independent third party, NSF, NACE® certification, and hazardous location certification.

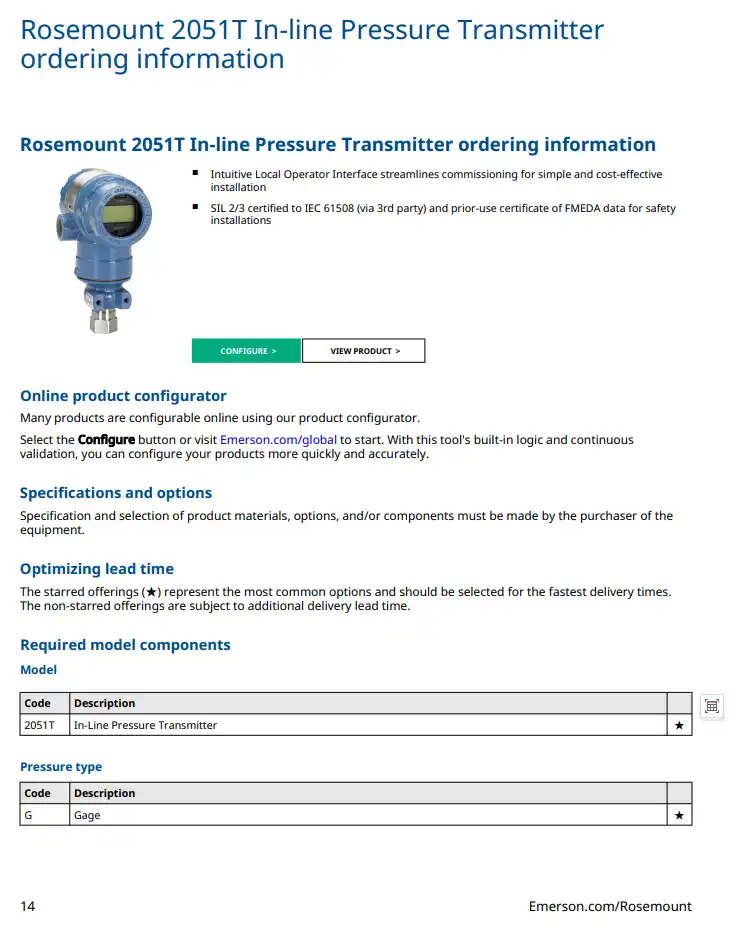

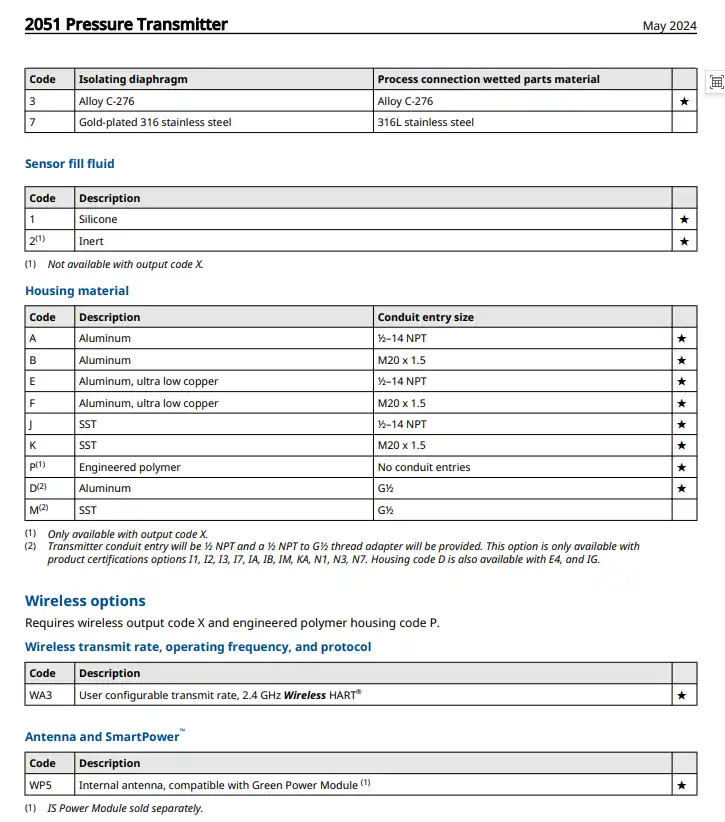

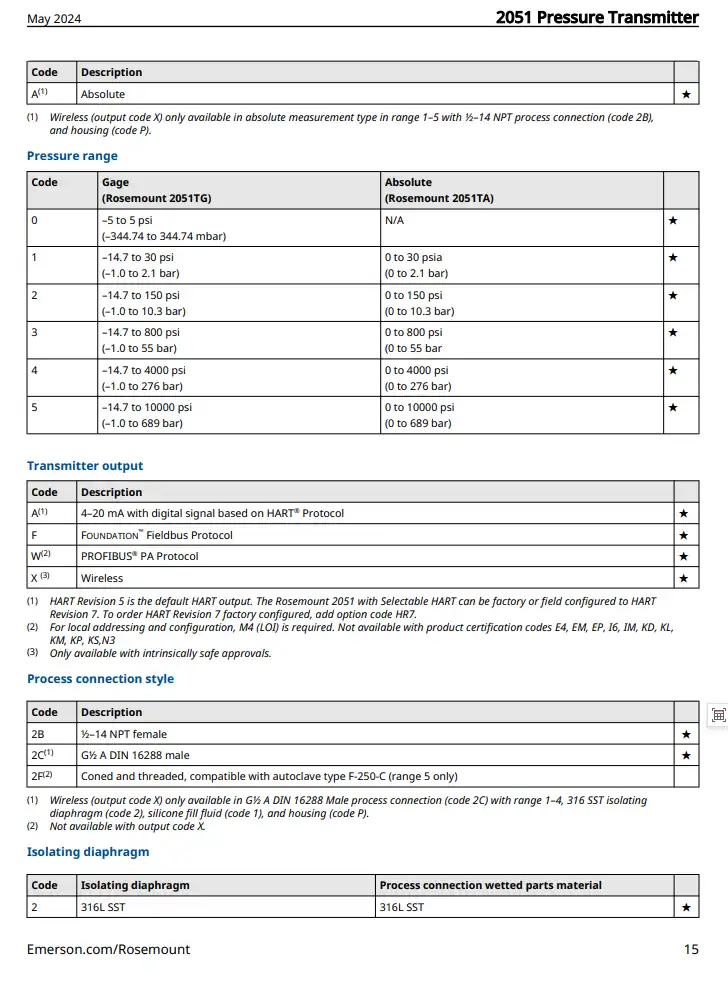

Technical Specifications

product-753-936 product-728-988

product-725-822

Packaging and Shipping

The Rosemount 2051TA Pressure Transmitter is securely packaged to ensure safe transportation. Each unit is individually boxed with protective materials to prevent damage during transit. Shaaxi ZYY adheres to strict packaging guidelines to guarantee that products arrive in the same condition as they left our facility.

product-1-1

Contact Us

Shaaxi ZYY is a professional instrument company specializing in the sales of premium brands such as Emerson, Rosemount, Yokogawa, Endress+Hauser, Azbil, Fisher, Honeywell, ABB, Siemens, and more. With over a decade of experience as a supplier, we offer a rich variety of product models and are dedicated to providing professional solutions for our clients. For more product pricing information or to discuss your specific needs, please contact us at lm@zyyinstrument.com. We look forward to serving you and being your trusted partner in the world of industrial instrumentation.
