Yokogawa EJX310A high-performance absolute pressure transmitter

The EJX310A high-performance absolute pressure transmitter adopts single crystal silicon resonant sensing technology and is suitable for measuring the pressure of liquids, gases or steam. The EJX310A converts the measured pressure into a 4-20mA DC current signal output and features functions such as rapid response, remote setting, and self-diagnosis.

Product Details: Yokogawa EJX310A Absolute Pressure Transmitter:

Product Features:

1. Accuracy: ± 0.075%.

2. Stability ± 0.2% URL/15 years.

3. Response time: 90 milliseconds.

4. TUV and Exida SIL2 / SIL3 certifications.

5. Local Parameter Settings (LPS).

6. Provide communication protocols such as HART 5/7, HART(1~5V DC) low-power type, FF fieldbus, PROFIBUS PA and BRAIN.

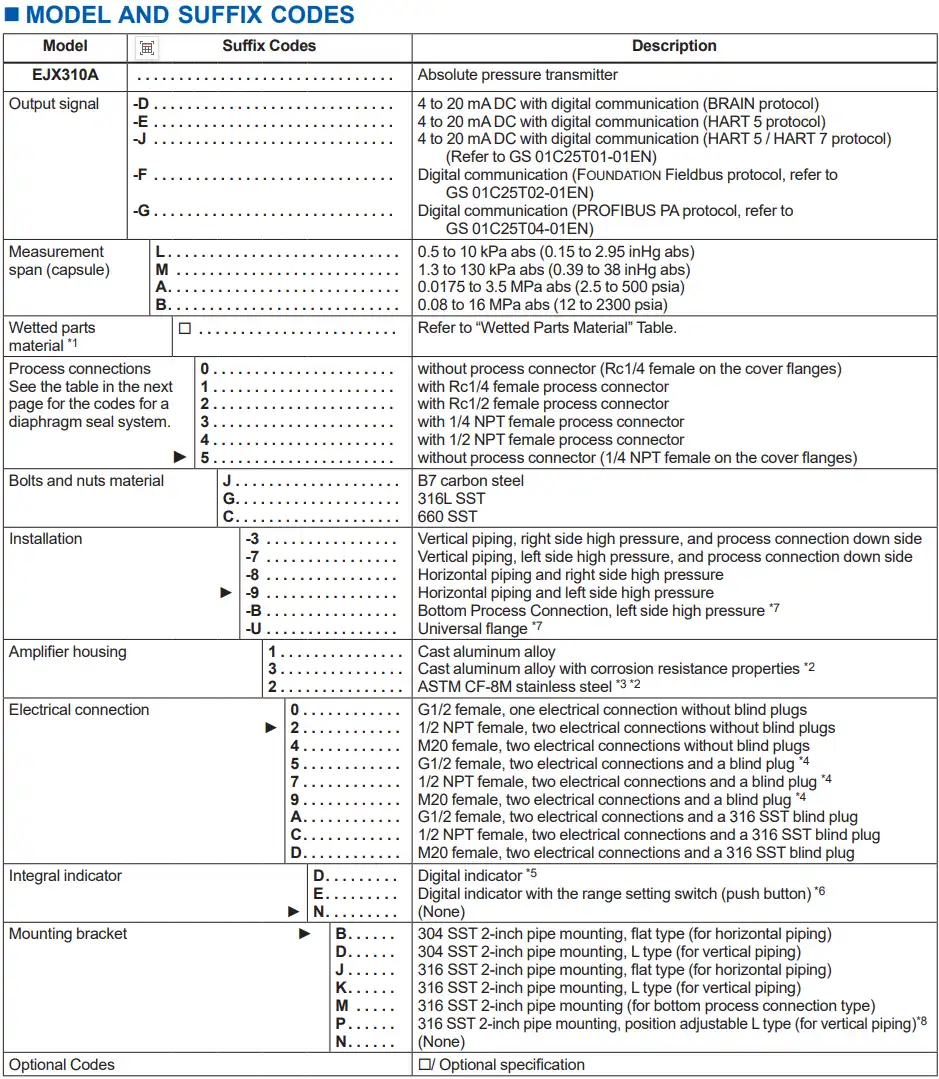

Technical Specifications:

product-939-1079

Packaging and Shipping:

The EJX310A is carefully packaged to ensure safe transit. Each unit is securely enclosed in protective packaging, suitable for global shipping. We adhere to strict quality control measures to prevent damage during transportation.

product-1-1

Contact Us:

Shaaxi ZYY is a professional instrument company specializing in the sales of imported brands such as Emerson, Rosemount, Yogawa Absolute Pressure Transmitter, E+H, Azbil, Fisher, Honeywell, ABB, Siemens, and more. With over a decade of experience as a supplier, we offer a rich variety of product models and are committed to providing professional solutions for our clients. For more product information and pricing, please contact us at lm@zyyinstrument.com.
