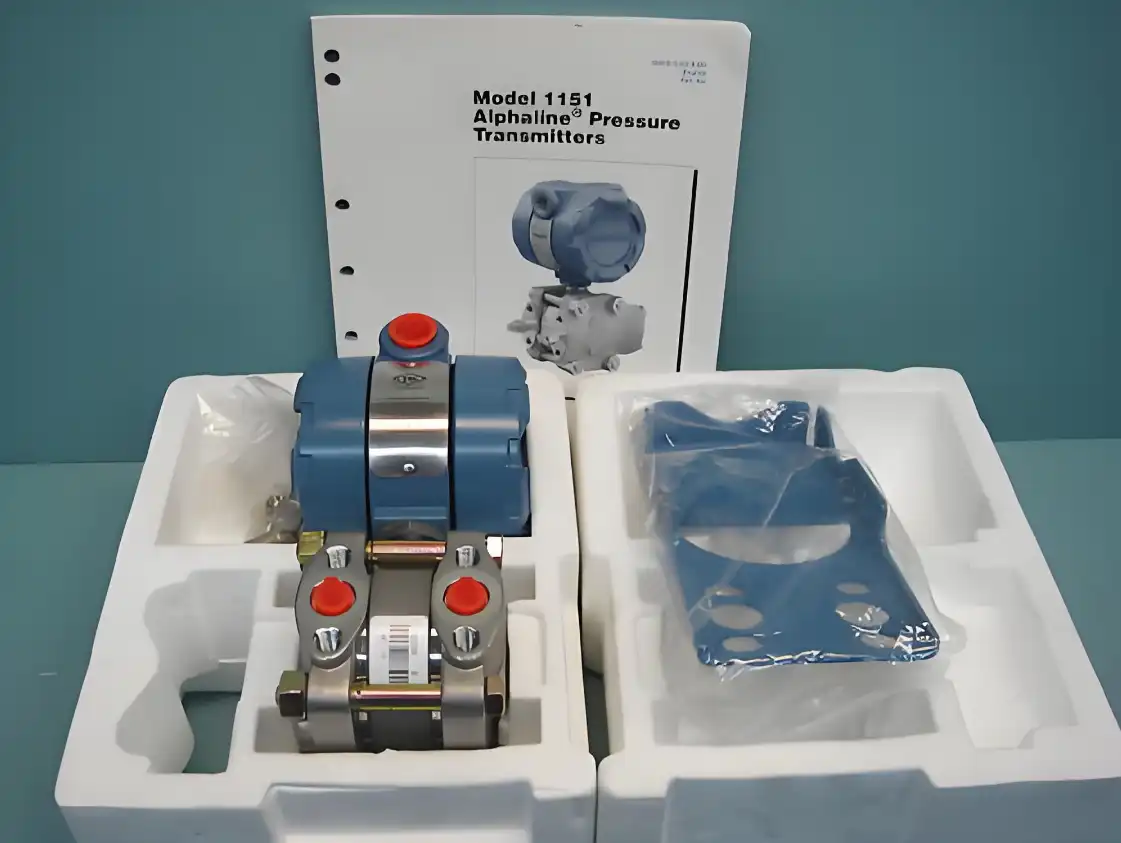

Rosemount 1151DP differential pressure transmitter

The Rosemount 1151DP differential pressure transmitter is used to measure the level, density and pressure of a liquid, gas or steam and then convert it into a 4-20mA DC signal output. 1151DP intelligent type can communicate with HART hand operator, through which to set, monitor or with the host unit into a field monitoring system.

Rosemount 1151DP Introduction

The rosemount 1151dp remains as a demonstration of the getting through heritage and designing skill of Emerson's Rosemount pressure estimation arrangements. Prestigious for its dependability, precision, and hearty plan, the product model has been a foundation in modern estimation, offering a flexible arrangement custom-made for a heap of utilizations across different businesses. This itemized item page means to give worldwide buyers a broad outline of the rosemount 1151dp, highlighting its elements, functionalities, specialized determinations, and the thorough help given by Shaaxi ZYY.

product-1121-843

Product Features

Reliable Execution: Offers steady and exact differential tension estimations.

Expansive Rangeability: Equipped for estimating many tensions, supporting adaptable application needs.

Long Help Life: Developed considering sturdiness, guaranteeing a long functional life expectancy and diminished upkeep costs.

Simple Reconciliation: Viable with different control frameworks, taking into account direct establishment and retrofit projects.

Improved on Upkeep: Intended for simplicity of administration, limiting free time and functional disturbances.

Product Functionality

The rosemount differential pressure transmitter 1151dp gives differential tension readings pivotal to the checking and control of cycle streams, levels, and tensions. It makes an interpretation of cycle tension into a 4-20 Mama electrical sign, working with simple incorporation with control frameworks and guaranteeing ongoing information accessibility for functional navigation.

Technical Specifications

Specification	Description
Measurement Range	Up to 6000 psi differential pressure
Output Signal	4-20 mA with optional HART protocol
Accuracy	Up to ±0.075% of span
Operating Temperature	-40°F to +250°F (-40°C to +121°C)
Process Connections	1/4-18 NPT and others available upon request
Electrical Connections	Multiple options including 1/2 NPT and M20 x 1.5
Materials	316 stainless steel, Alloy C-276, and others
Certifications	ATEX, IECEx, FM, CSA, and others

Applications

Process Industry: Ideal for applications requiring precise tension estimation for process control and improvement.

Oil and Gas: Upholds upstream, halfway, and downstream activities, including investigation, refining, and appropriation.

Substance Assembling: Guarantees process security and productivity in forceful and destructive conditions.

Power Age: Works with precise estimations for steam, water, and gas control in power plants.

Water and Wastewater: Helps with the administration and observing of water treatment processes.

Packaging and Shipping

Understanding the significance of item trustworthiness, each product is fastidiously bundled to guarantee it shows up in perfect condition. Our coordinated operations group is proficient at taking care of all transportation necessities, guaranteeing opportune and safe conveyance of your items.

product-1-1

Contact Us

For additional subtleties on the product or some other requests, kindly contact Shaaxi ZYY. As an expert provider with a rich determination of imported instrument brands and more than 10 years of involvement, we are committed to giving proficient arrangements.Contact us at lm@zyyinstrument.com for more product information, quotes, or technical support. Our team is here to assist you in achieving operational excellence with our expert services and high-quality products.
