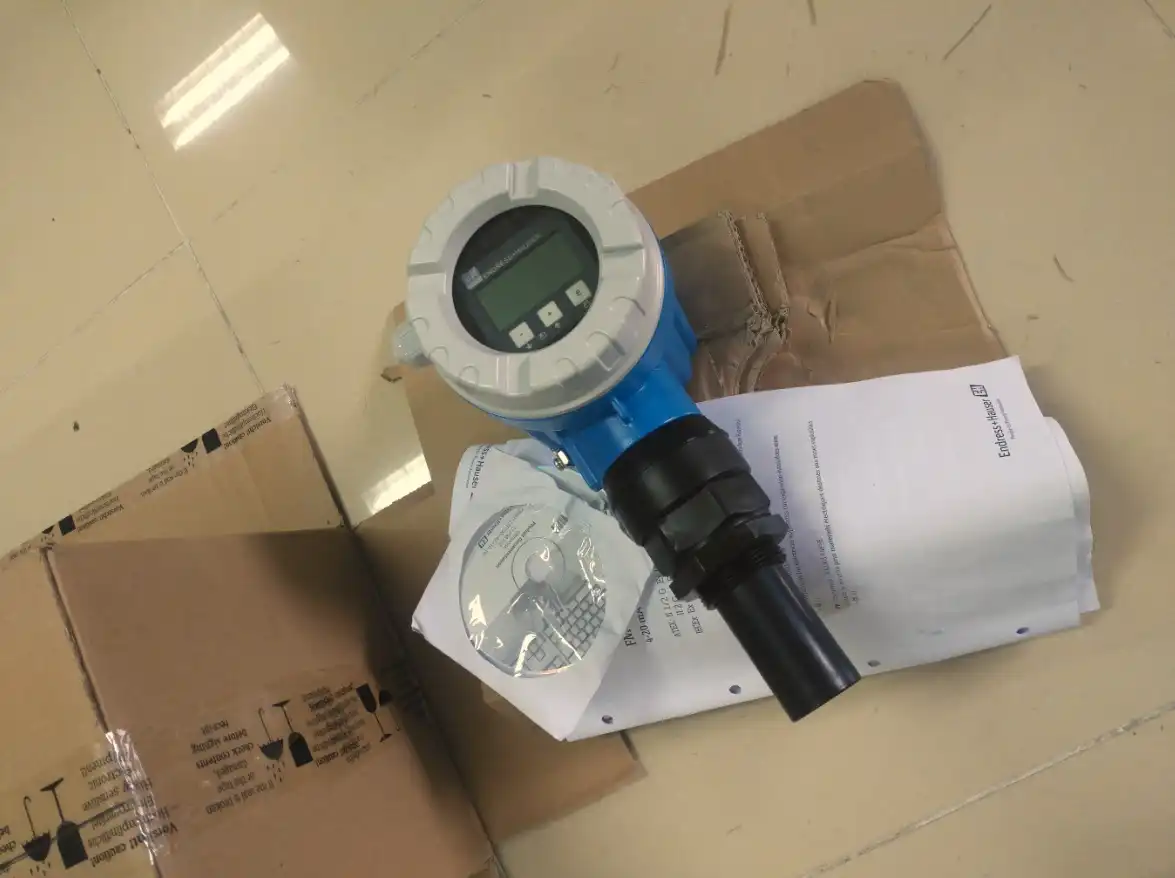

E+H ultrasonic level meter FMU40

Economical level measuring instrument, suitable for liquid and solid bulk material level measurement under complex conditions, measuring range up to 5m

Product advantage

1. Four lines of plain text display, menu-guided field operation, quick and simple instrument debugging, 7 languages optional.
2. On-site envelope display, complete simple instrument fault diagnosis.
3. FieldCare operating software is provided to facilitate remote operation of the instrument, fault diagnosis and documentation of measuring points.
4. Suitable for explosion danger area (gas-EX, dust-EX).
5. Linearization function (up to 32 points) can convert the measured value into any unit to length, volume or flow.
6. Built-in temperature sensor to automatically correct the sound speed affected by temperature.
7. Optional remote display and operation (up to 20m(66ft) installation spacing with transmitter).

product-763-840

product-1175-878

Specification parameter

1. Measurement principle
Ultrasonic wave
2. Features/Applications
Compact ultrasonic transmitter
3. Power/Communication
Two-wire/four-wire (HART), PROFIBUS PA, FOUNDATION Fieldbus
4. Measurement accuracy
+/- 2mm or +/- 0.2% of the set range
5. Ambient temperature
- 40... 80 °C
(- 40... 176 °F)
6. Process temperature
- 40... 80 °C
(- 40... 176 °F)
7. Process pressure (absolute pressure)/maximum overpressure limit
0.7... 3 bar abs
(10... 44 psi)
8. Main liquid parts
PVDF
9. Process connection
G / NPT 1 1/2"
10. Blind zone distance
0.25m (0.8ft)
11. Maximum measurement distance
Liquids: 5 m (16 ft),
Solids: 2 m (6.6 ft)
12. Communication
4... 20 mA HART
PROFIBUS PA
FOUNDATION Fieldbus
13. Certificates and certifications
ATEX, FM, CSA, TIIS, INMETRO, NEPSI

Application field

Prosonic FMU40 is suitable for non-contact level measurement of liquids, slurps and solid bulk materials as well as flow measurement in open channels or measuring weirs. Two-wire or four-wire integrated transmitters can be used in complex applications such as storage tanks, mixers, silos and conveyor belts. The field envelope display can be used for simple instrument fault diagnosis. The linearization function (up to 32 points) converts the measured value to any unit of length, volume or flow.
2. Suitable for continuous non-contact level measurement of liquid, slurry, silt and solid blocks; Flow measurement of open channels and measuring weirs; System Integration: HART(Standard), 4... 20mA, PROFIBUS PA, FF Foundation Fieldbus; Maximum measuring range: liquid: 5m solid: 2m. Other measuring range: FMU41: liquid 8m, solid: 3.5m; FMU42: liquid: 10m, solid: 5m; FMU43: liquid: 15m, solid: 7m; FMU44: liquid 20m, solid 10m.

Packaging and Transportation:

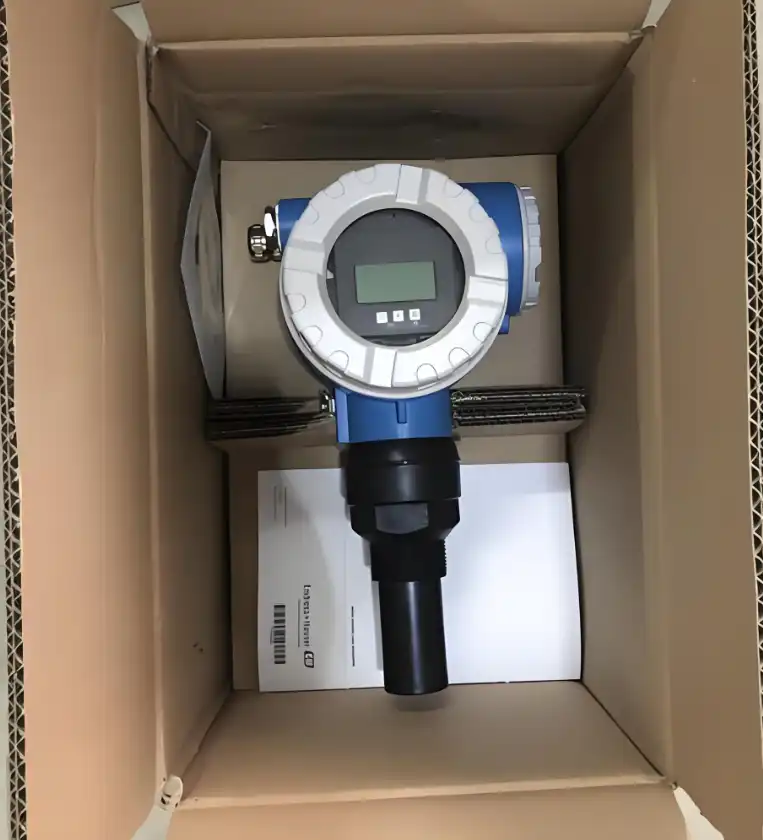

The E+H ultrasonic level meter FMU40 is securely packaged to withstand the rigors of international transportation. Each unit is carefully wrapped and protected with appropriate cushioning materials to prevent damage during transit. We ensure that the packaging complies with international shipping standards and regulations.

product-1-1

Contact Us:

Shaaxi ZYY is a professional instrument company specializing in the sales of premium brands such as Emerson, Rosemount, Yokogawa, Azbil, Fisher, Honeywell, ABB, Siemens, and Endress+Hauser. After being involved as a vendor for over a decade, we provide a broad range of product models and are devoted to offering our shoppers skilled services. For more product pricing and information, please contact us at lm@zyyinstrument.com. In the realm of agricultural monitoring, we are committed to continuing to be of service to you and establishing your confidence.
