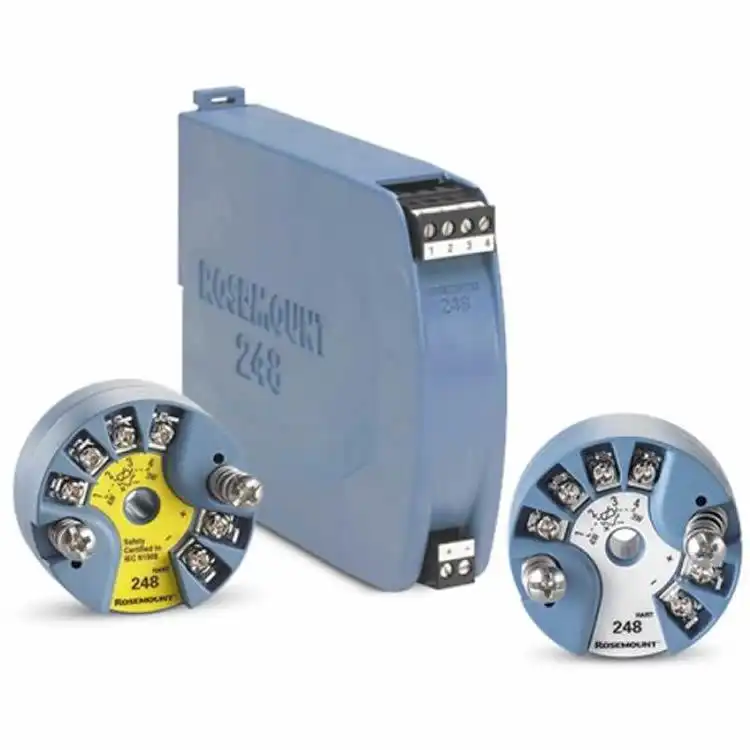

Rosemount™ 248 rail-mounted temperature transmitter

The Rosemount 248 temperature transmitter, as an industry standard solution, can provide consistent and reliable performance in the process environment. The compact DIN rail design is easy to install and widely applicable, meeting common single-point temperature measurement requirements.

Product Specification

1. Single-sensor capability that supports universal sensor input (RTD, T/C, mV, ohms).
2. Output signal 4-20 mA /HART® protocol.
3. DIN rail installation on the casing.
4. The diagnosis includes the basic diagnosis of open circuit/short circuit sensors.
5. Calibration option: 5-point calibration.
6. Certificate/Certification for hazardous locations, Marine type, in compliance with RoHS (2002/95/EC Directive).

product-750-750

product-1920-1920

Product Features

1. Standard transmitters used to meet the requirements of conventional single-point measurement applications.
2. The device dashboard can serve as a concise interface for simplifying device configuration and performing diagnostic troubleshooting.
3. Transmitter - Sensor Callendar-Van Dusen constant matching.
4. The exterior lines are smooth and the thickness is 23.5mm.
5. One-year stability guarantee, which can save maintenance costs.
6. Open circuit/short circuit sensor diagnosis can assist in detecting problems in sensor circuits, ensuring reliable performance.

Specification

Below is a table outlining the key technical specifications of the product:

Specification Category	Details
Input Types	RTD (Pt100, Pt1000, Ni120, Cu50), Thermocouples (Type B, E, J, K, R, S, T), milliVolts, Ohms
Output Signal	HART 4-20 mA DC
Accuracy	±0.15 °C (at 0-150°C span)
Temperature Range	-40 to +185 °F (-40 to +85 °C) (ambient); extended ranges with BR5 and BR6 option codes

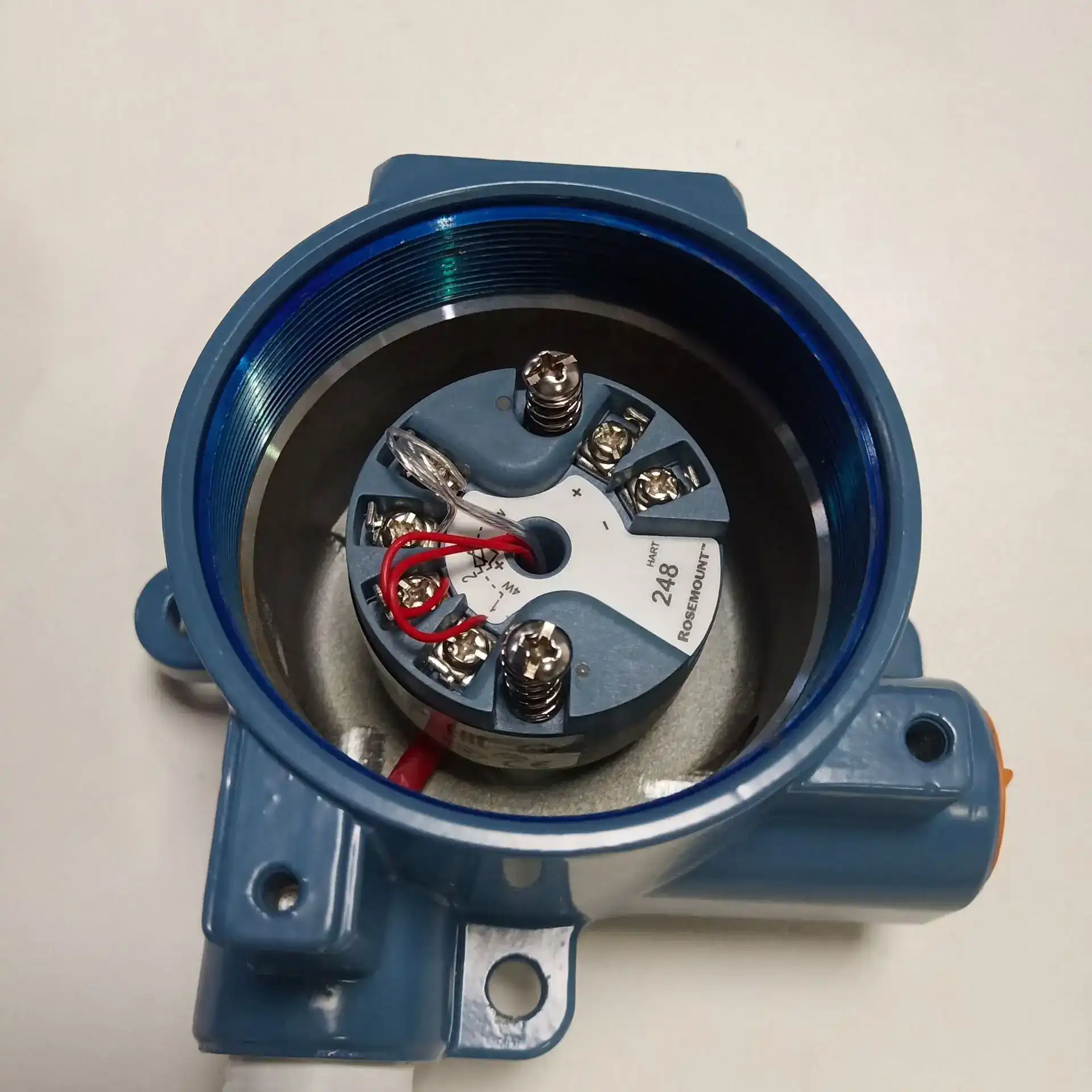

Housing Options	Connection head, universal head, DIN rail mount
Enclosure Rating	NEMA 4X (IP66)
Power Requirements	12 to 42.4 Vdc
Loop Resistance	250 to 1100 ohms
Temperature Effects	Operating atmosphere must be consistent with hazardous location certifications
Safety Certifications	IEC 61508:2010 (SIL 2/3)
Configuration Tools	Field Communicator, AMS Device Manager
Diagnostics	Self-test, sensor diagnostics, intermittent sensor detection
Calibration	Sensor Input Trim, Transmitter-Sensor Matching, Output Trim
Environment	Designed for intrinsically safe or non-incendive field wiring practices
Physical Security	Measures to restrict unauthorized access to protect system integrity

Global Support and Service

Shaaxi ZYY, an expert instrument organization with more than 10 years of involvement, remains behind the product, offering thorough specialized help and administrations. We give an extensive variety of item models from driving brands like Emerson, Yokogawa, Endress+Hauser, Fisher, Honeywell, ABB, and Siemens, taking care of the different requirements of our worldwide customers.

Our obligation to quality is reflected in the affirmations we maintain, including CNAS, ROHS, ExNEPSI, ISO9001, and Mama, guaranteeing that our items satisfy the most noteworthy worldwide guidelines. We focus on completely safe bundling and transportation to convey items in perfect condition.

Get in Touch

For more information on the product or to request a quote, please contact us at lm@zyyinstrument.com. Shaaxi ZYY is your reliable partner for professional solutions and exceptional customer service, recognized and trusted by clients worldwide.
