Rosemount 2051TG Inline Pressure Transmitter

The Rosemount 2051 direct connection pressure transmitter is an industry-standard device that can provide reliable process data and help you improve work efficiency. This transmitter can provide accurate gauge pressure and absolute pressure measurement and is available for direct installation. This pressure transmitter features an intuitive on-site operation display panel, which simplifies debugging and reduces the number of required tools. It is an economical, efficient and powerful solution.

Product Details: Rosemount 2051T Inline Pressure Transmitter

Product Overview:

The Rosemount 2051t Inline Pressure Transmitter remains as a zenith of development in accuracy pressure estimation instrumentation, taking special care of a wide cluster of modern applications. Prestigious for its vigorous plan and state of the art innovation, it is proclaimed for its unequaled unwavering quality and precision, acquiring its place as an irreplaceable device for process control and streamlining.

product-1-1

Product Features:

1. Limited warranty of up to 5 years.
2. The range ratio is as high as 100:1.
3. Communication protocols: 4-20mA HART®, WirelessHART®, FOUNDATION™ fieldbus, PROFIBUS®, 1-5V low-power HART®.
4. Measurement range: The gauge pressure measurement can reach up to 10,000 psig (689.47bar), and the absolute pressure measurement can reach up to 10,000 PSIA (689.47bar).
5. Process contact liquid materials 316L SST and alloy C-276.
6. Basic diagnosis.
7. Certification is achieved through SIL 2/3 certification based on IEC 61508 implemented by an independent third party, NSF, NACE® certification, and hazardous location certification.

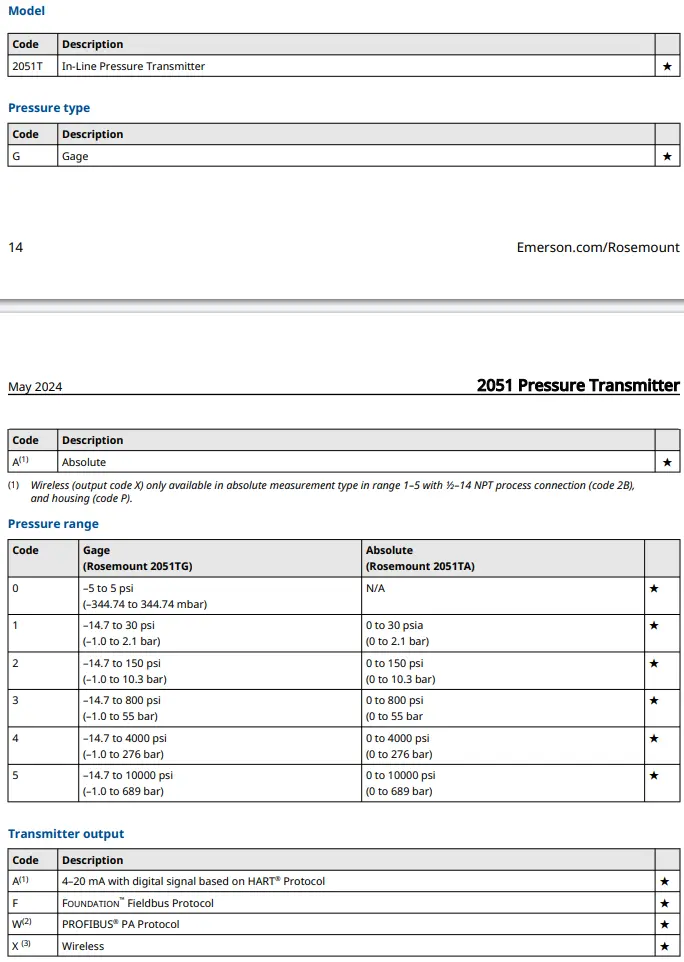

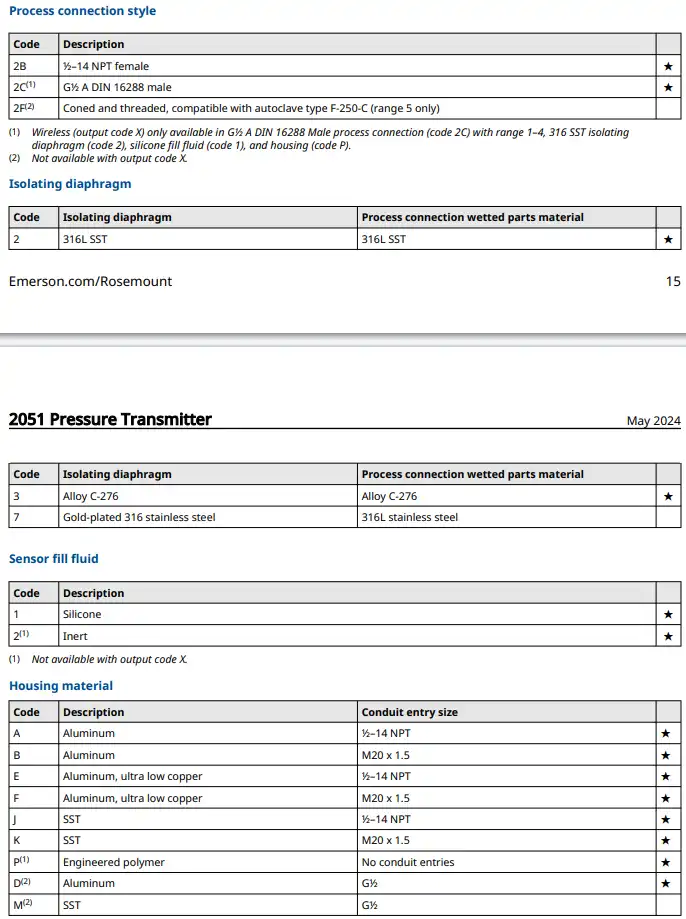

Technical Specifications:

product-684-962

product-686-919

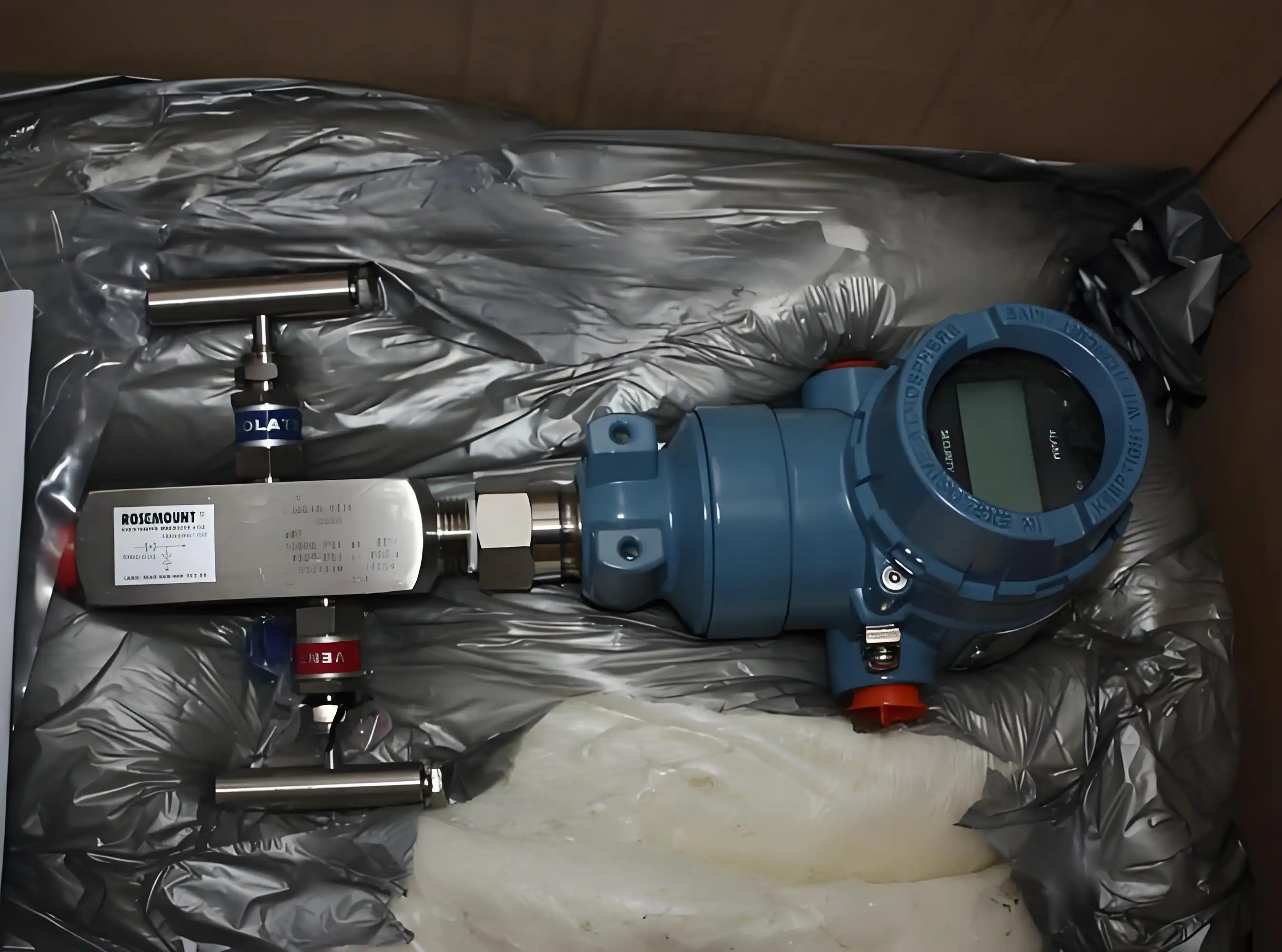

Packaging and Shipping:

We guarantee secure bundling to protect the respectability of our items during travel. Our productive transportation strategies guarantee convenient conveyance to your doorstep, limiting lead times and guaranteeing consumer loyalty.

product-1-1

Contact Us:

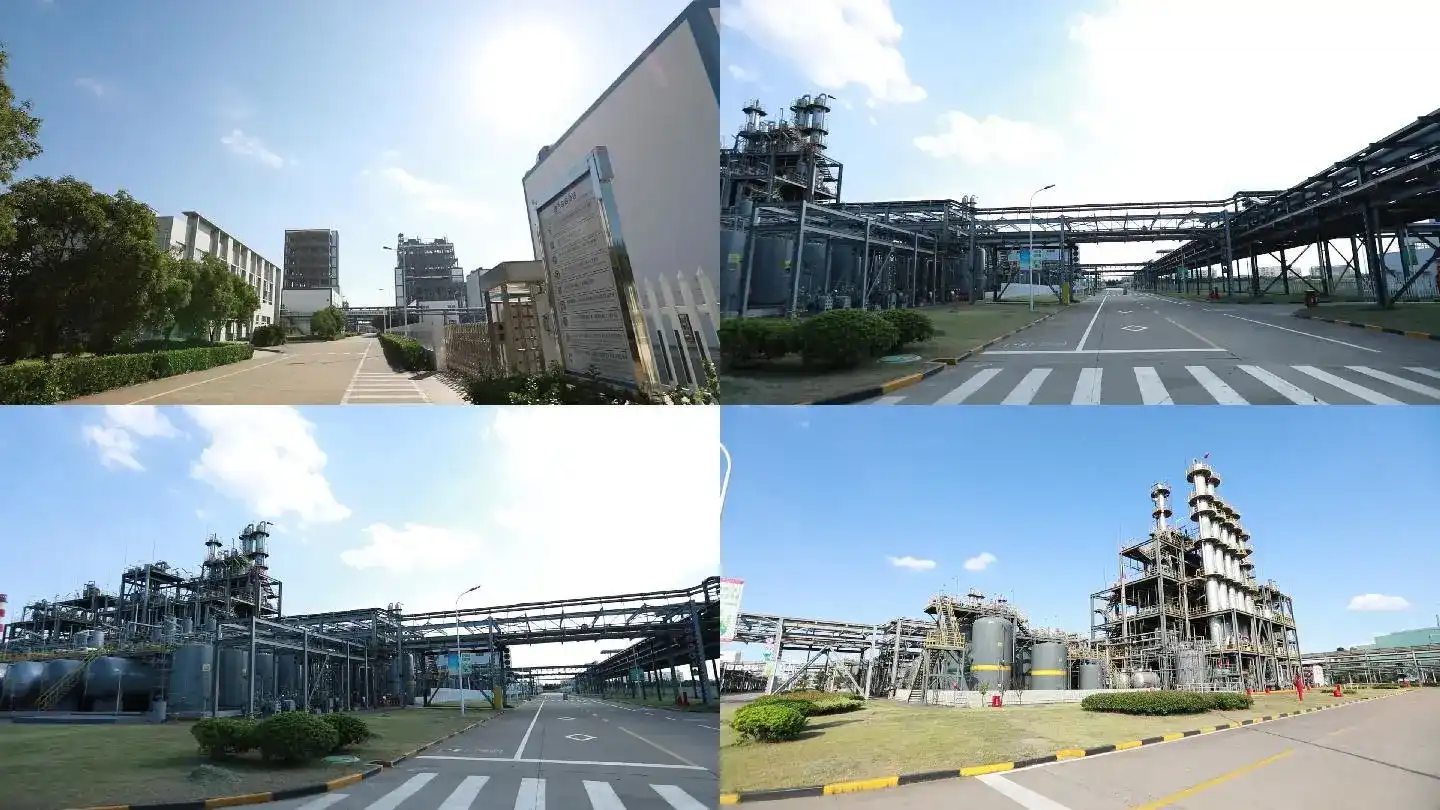

Shaaxi ZYY has some expertise in the circulation of premium imported brands like Emerson, Rosemount, Yokogawa, Endress+Hauser, Azbil, Fisher, Honeywell, ABB, Siemens, and that's only the tip of the iceberg. With more than 10 years of provider experience, we offer a broad scope of item models and are devoted to giving proficient answers for our clients. For additional requests or item citations, please contact us at lm@zyyinstrument.com.
