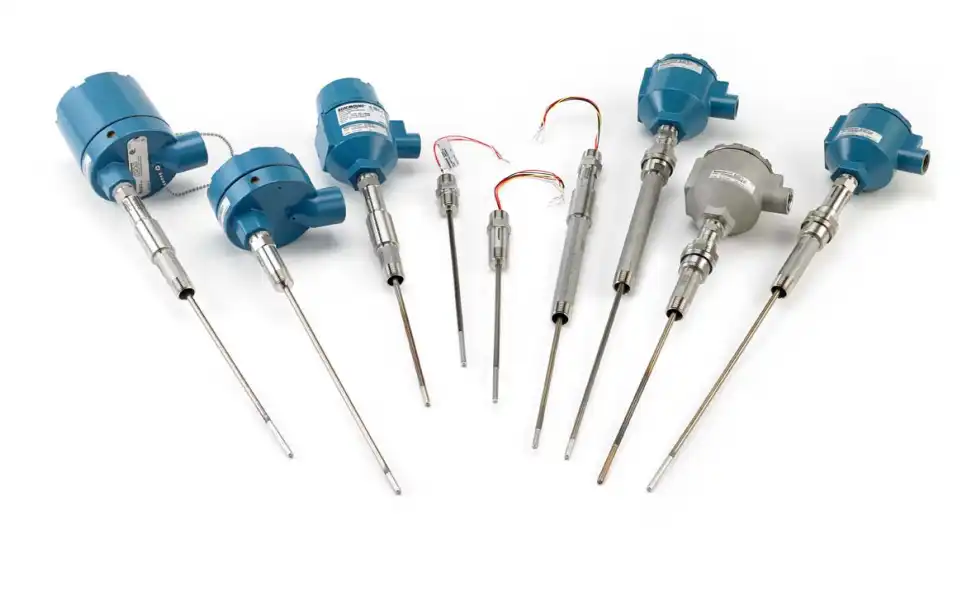

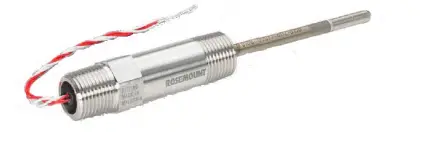

Rosemount 214c Temperature Sensor

The Rosemont 214C thermistor temperature sensor uses a Pt-100 unit or dual-element thermistor (RTD), covering a temperature range from -196 to 600°C (-321 to 1112°F). This sensor is a special solution that adopts a thin-film and wound design, enhancing application flexibility. This sensor has many calibration options, including Grade A or Grade B sensor accuracy, and also provides the Callendar-Van Dusen constant for transmitter - sensor matching to achieve high precision.

Product Specification

1. Temperature range: For wound elements, according to IEC 60751:2008, after vibrating 1g for 150 hours between 20 and 500 Hz, the maximum freezing point resistance drift measured was 0.05 °C (0.020).
2. Lead: 24 AWG lead; FEP insulation Color coding is carried out in accordance with IEC 60751.
3. Time constant/Response: When tested in flowing water in accordance with the provisions of IEC 60751:2008, it takes up to 10.8 seconds to reach 50% of the sensor response.
3. Stability: According to the method specified in IEC 60751:2008, the maximum freezing point resistance drift measured after 1,000 hours at the maximum specified temperature is ±0.15 °C (0.059).
4. Insulation resistance: At room temperature and measured at 500 VDC, the minimum insulation resistance is 1000 MΩ.
5. Calibration options: IEC 751 Class A or B; Single-point calibration The calibration time schedule or the calibration range specified by the customer all carry the Callendar-Van Dusen constant.

product-965-603

product-447-145

Product Features

The unit components or dual-element Pt-100 RTD with film or winding design can meet various application requirements.
2. Thin-film sensors can withstand industry applications with high vibration.
3. The winding design is suitable for applications that require high precision and dual components as well as/or high-temperature applications.
4. It covers a temperature range of -196 to 600°C (-321 to 1112°F), enhancing the flexibility of application.
5. The Callendar-Van Dusen constant is beneficial for the transmitter - sensor matching and improves the accuracy.
6. Class A accuracy (optional) ensures that key temperature measurement points meet tolerance and accuracy standards.
7. Multiple housing and connector options help optimize applicability and meet various application requirements.
8. It includes spring compression or compact spring compression installation types, which have better applicability.
9. North American certification meets the requirements of hazardous locations.

Packaging and Shipping

The product is painstakingly bundled to safeguard against harm during travel. Every sensor is safely boxed with fitting padding materials and is joined by a point by point client manual and confirmation reports. Shaaxi ZYY guarantees that all shipments are made involving solid transporters and give following data to conveyance observing.

product-1-1

Contact Us

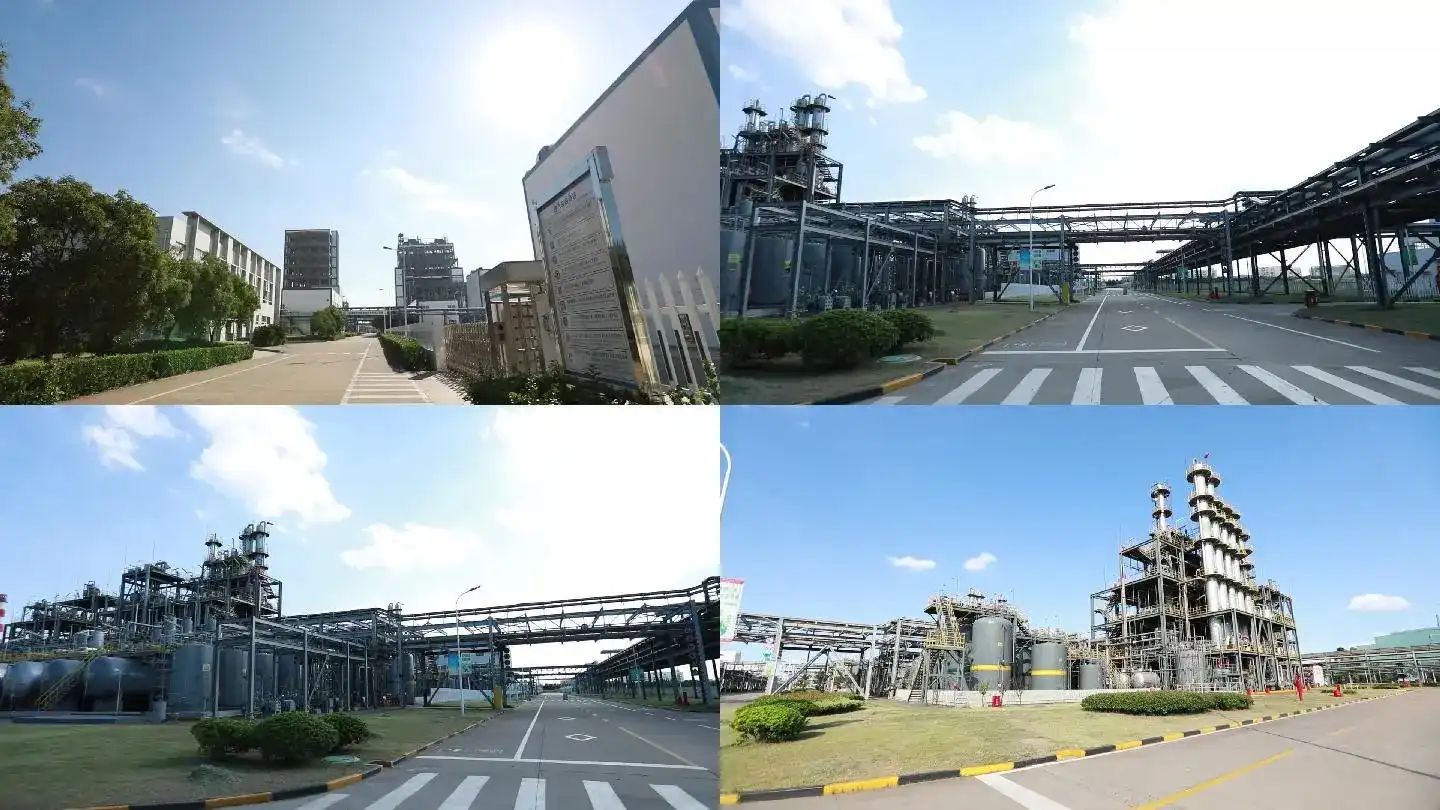

Shaaxi ZYY is an expert instrument organization gaining practical experience in the deals of premium brands like Emerson Rosemount, Yokogawa, Endress+Hauser, Fisher, Honeywell, ABB, Siemens, and that's just the beginning. With north of 10 years of involvement as a provider, we offer a rich determination of item models and are committed to giving proficient answers for our clients. For more item data or to demand a statement,please contact us at im@zyyinstrument.com. We look forward to serving you and exceeding your expectations.
