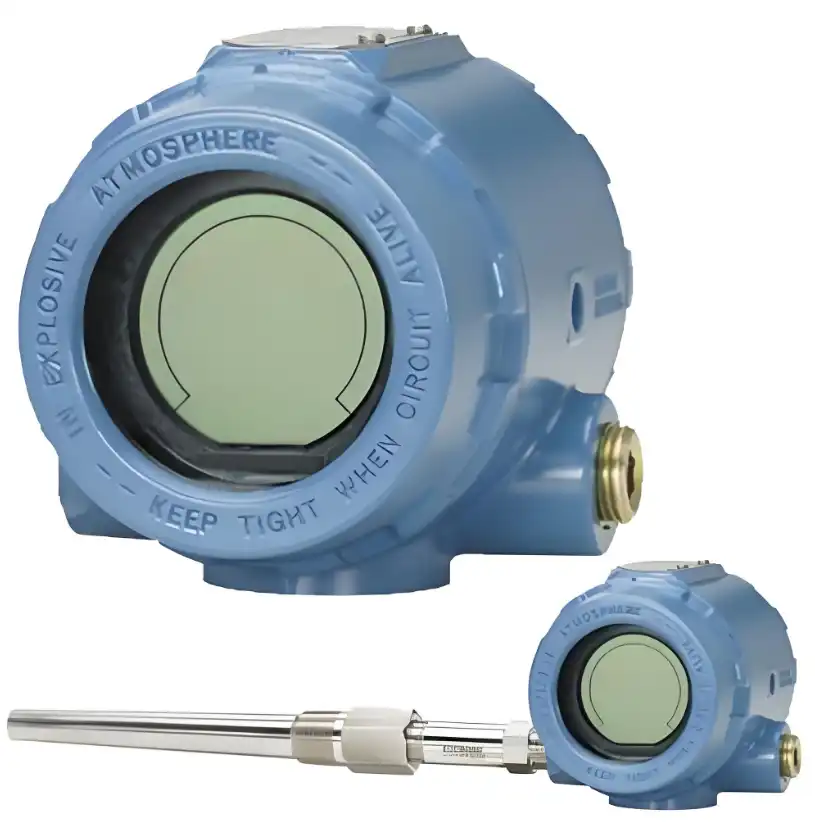

Rosemount™ 3144P temperature transmitter

Rosemount 3144P temperature transmitter provides you with industry-leading temperature measurements with accuracy, stability and reliability. The transmitter's dual chamber housing ensures reliability and advanced diagnostics to keep your measuring points up and running. The transmitter combines Rosemount X-well™ technology with the Rosemount 0085 clamp sensor to accurately measure process temperature, eliminating the need for hot tubing or process penetration.

Rosemount™ 3144P Temperature transmitter specifications：

1. Input Support universal sensor input (RTD, T/C, mV, ohms), can support single sensor or dual sensor assembly.
2. Output signal 4-20 mA /HART™ protocol, FOUNDATION™ Fieldbus protocol.
3. Double chambers of the shell are installed onsite.
4. Display/Interface Large LCD with percentage range graphics and buttons/switches.
5. Diagnostics Basic diagnostics, Hot Backup™ function, sensor drift warning, thermocouple aging, min/Max tracking.
6. Calibration options transmitter - sensor matching (Callender - Van. Doussen constant), custom adjustment.
7. Certificate/Certification Independent third party certified to SIL 2/3 according to IEC 61508, dangerous place, Marine type.

product-815-836

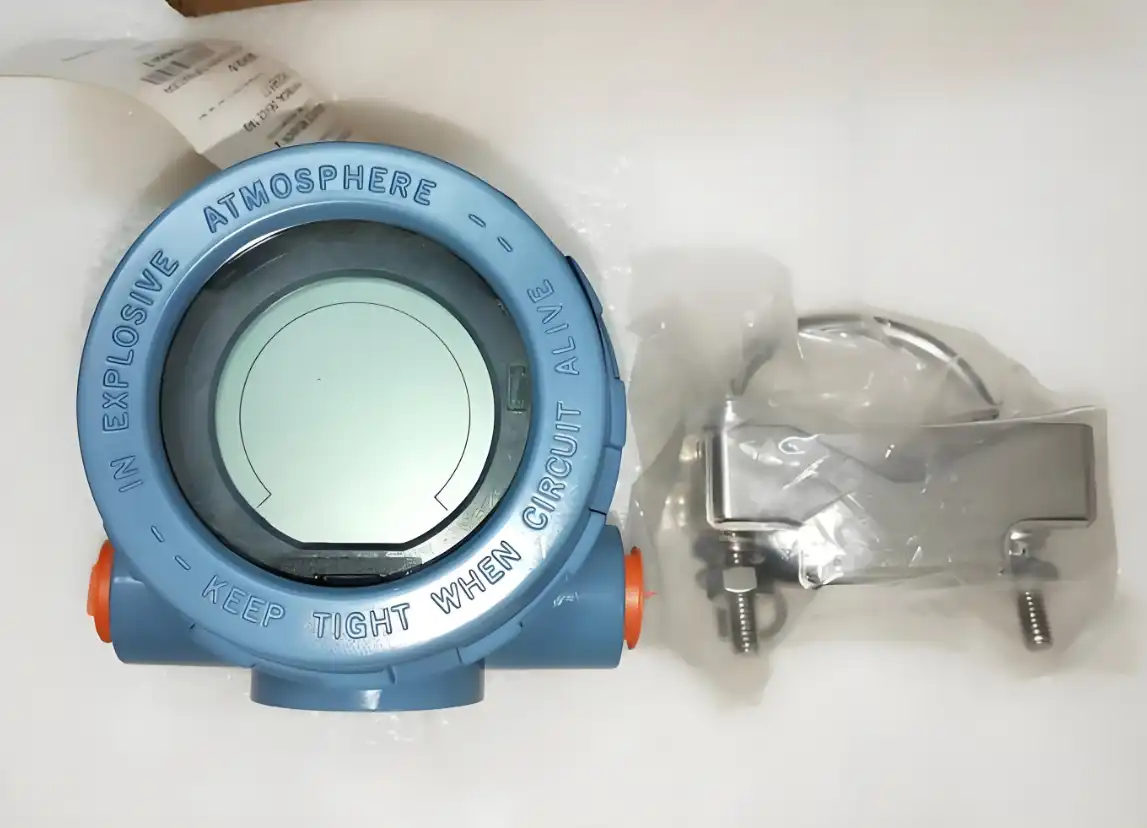

product-1147-828

Rosemount™ 3144P Temperature Transmitter Features:

1. Advanced accuracy and reliability ensure excellent performance in critical control and safety applications.
2. Transducer-sensor matching increases the measurement accuracy to 75%.
3. 5-year long-term stability prolongs calibration intervals and reduces accidental trips on site.
6. Rosemount X-well technology measures temperature without process perforation, reducing design, installation and maintenance costs.
7. Double exterior shell provides excellent protection in harsh environments.
8. Hot Backup™ features and sensor drift warnings Use dual sensors to ensure measurement integrity.
9. The thermocouple aging diagnosis function can monitor the health of the thermocouple and prevent the failure caused by aging.
10. Minimum and maximum temperature tracking can monitor temperature limits for easy troubleshooting.
11. The transmitter supports multiple protocols for easy integration into multiple host environments across a variety of industries.
12. The device dashboard can be used as a concise interface to simplify device configuration and perform diagnostic troubleshooting.

product-1-1

Technical Support and Service

Shaaxi ZYY is an expert instrument organization with more than 10 years of involvement with providing modern mechanization items. We have some expertise in offering many items from prestigious brands like Emerson Rosemount, Yokogawa, Endress+Hauser (E+H), Fisher, Honeywell, ABB, Siemens, and that's only the tip of the iceberg. Our obligation to giving great items and far reaching arrangements has procured us the trust of clients around the world.
For any specialized requests or after-deals support, our group of specialists is prepared to help you in guaranteeing that the rosemount 3144p temperature transmitter meets your cycle control needs really and effectively. We offer a full scope of administrations, from item determination to establishment direction and investigating, to guarantee that your interest in our items conveys the most ideal presentation.

Contact Us

For more information on the product or to request a quote, please reach out to us at lm@zyyinstrument.com. Our committed outreach group will be glad to give you definite item data and estimating, custom fitted to your particular prerequisites. Pick Shaaxi ZYY for your modern mechanization needs and experience the distinction of working with an accomplice focused on greatness and consumer loyalty.
