Yokogawa Temperature Transmitter YTA110

Supports input of thermocouple, thermal resistance, DC voltage or resistance signals.
Converted to 4-20 mA DC signal or fieldbus signal output.
It is divided into HART communication type and FOUNDATIONTM fieldbus communication type.
The HART communication type complies with SIL2 safety level.

Product Details: Yokogawa Temperature Transmitter YTA110

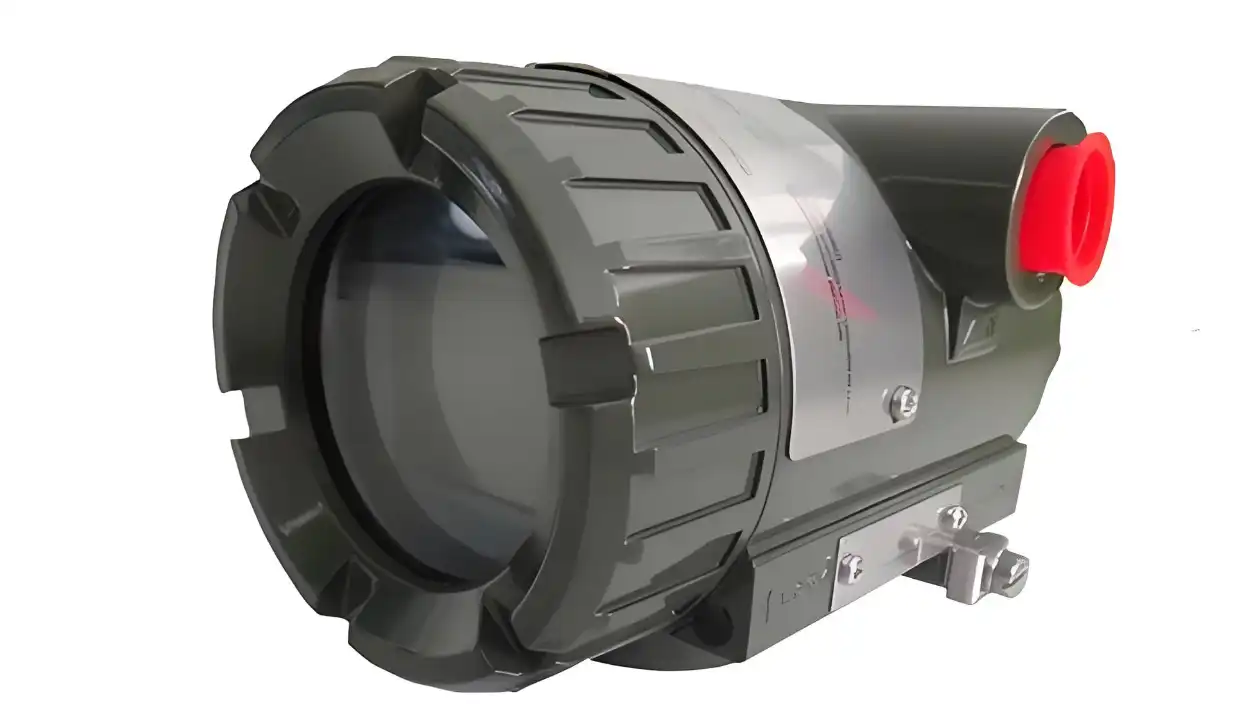

The YTA110/310 is a field-mount temperature transmitter that accepts a single sensor input and YTA320 is a dual inputs.
This input can be from a RTD, thermocouple, ohm, or DC millivolt. These models support BRAIN communication protocol. Dual input functions include Failed Sensor Backup, Temperature Averaging, and Differential Temperature.

product-1259-709

product-1132-841

Product Features:

The Yokogawa Temperature Transmitter Yta110 stands apart for its chip based detecting innovation, which guarantees long haul exactness and high unwavering quality. It is outfitted with a double compartment lodging that offers hearty protection from unforgiving conditions, and it is confirmed SIL2 by TÜV, meeting rigid security prerequisites. The transmitter upholds both Cerebrum and HART correspondence conventions, taking into account adaptable and productive design and correspondence. Its self-diagnostics capability is a fundamental element that ensures constant execution and lessens the all out cost of proprietorship. The LCD show with a structured presentation gives an unmistakable and quick visual sign of the temperature readings.

Technical Specifications:

Specification	Details
Accuracy	±0.1% of calibrated span or A/D accuracy/span + D/A accuracy, whichever is greater
Cold Junction Compensation (CJC)	±0.5°C (±0.9°F) for T/C only
Ambient Temperature Effect	±0.1% or ± (Temperature Coefficient /span) per 10°C change
Stability (RTD)	±0.1% of reading or ± 0.1°C per 2 years, whichever is greater at 23±2°C
Stability (T/C)	±0.1% of reading or ± 0.1°C per year, whichever is greater at 23±2°C
Power Supply Effect	±0.005% of calibration span per volt
Vibration Effect	0.21 mm peak displacement at 10 to 60 Hz, 3G at 60 to 2000 Hz
Position Effect	None
Update Time	Approximately 0.5 seconds
Turn-on Time	Approximately 5 seconds
Damping Time Constant	Selectable from 0 to 99 seconds
Ambient Temperature Limits	-40 to 85°C (-40 to 185°F) with Integral Indicator, -30 to 80°C (-22 to 176°F) without
Humidity Limits	5 to 100% RH at 40°C (104°F)
EMC Conformity	EN61326-1 Class A, EN61326-2-3

Product Highlights:

High level Detecting Innovation: The Yokogawa Temperature Transmitter Yta110 uses state of the art chip based innovation for upgraded precision and unwavering quality after some time.
Double Compartment Lodging: This plan guarantees high protection from brutal conditions, safeguarding the inside parts and keeping up with execution.
Wellbeing Accreditation: SIL2 affirmation by TÜV gives confirmation of the gadget's security abilities in basic applications.
Adaptable Correspondence Choices: Support for Mind and HART conventions empowers simple combination into existing frameworks and considers distant setup.
Self-Diagnostics: The implicit self-diagnostics capability screens the transmitter's wellbeing, making aware of likely issues before they influence execution.
Clear Showcase: The LCD show with a reference diagram offers a reasonable, initially perspective on temperature readings and framework status.

Packaging and Shipping:

The product is painstakingly bundled to guarantee safe transportation and conveyance. Every unit is safely encased in defensive bundling material and delivered as per worldwide transportation principles to forestall any harm during travel.

product-1-1

Contact Us:

Shaaxi ZYY is a specialist instrument association invest critical energy in the arrangements of premium brands like Emerson, Rosemount, Yokogawa, E+H, Azbil, Fisher, Honeywell, ABB, Siemens, and that is only the start. With over 10 years of contribution as a supplier, we offer a broad assortment of thing models and are centered around offering capable responses for our clients. For all the more thing assessing information or to discuss your specific essentials, please contact us at lm@zyyinstrument.com.
